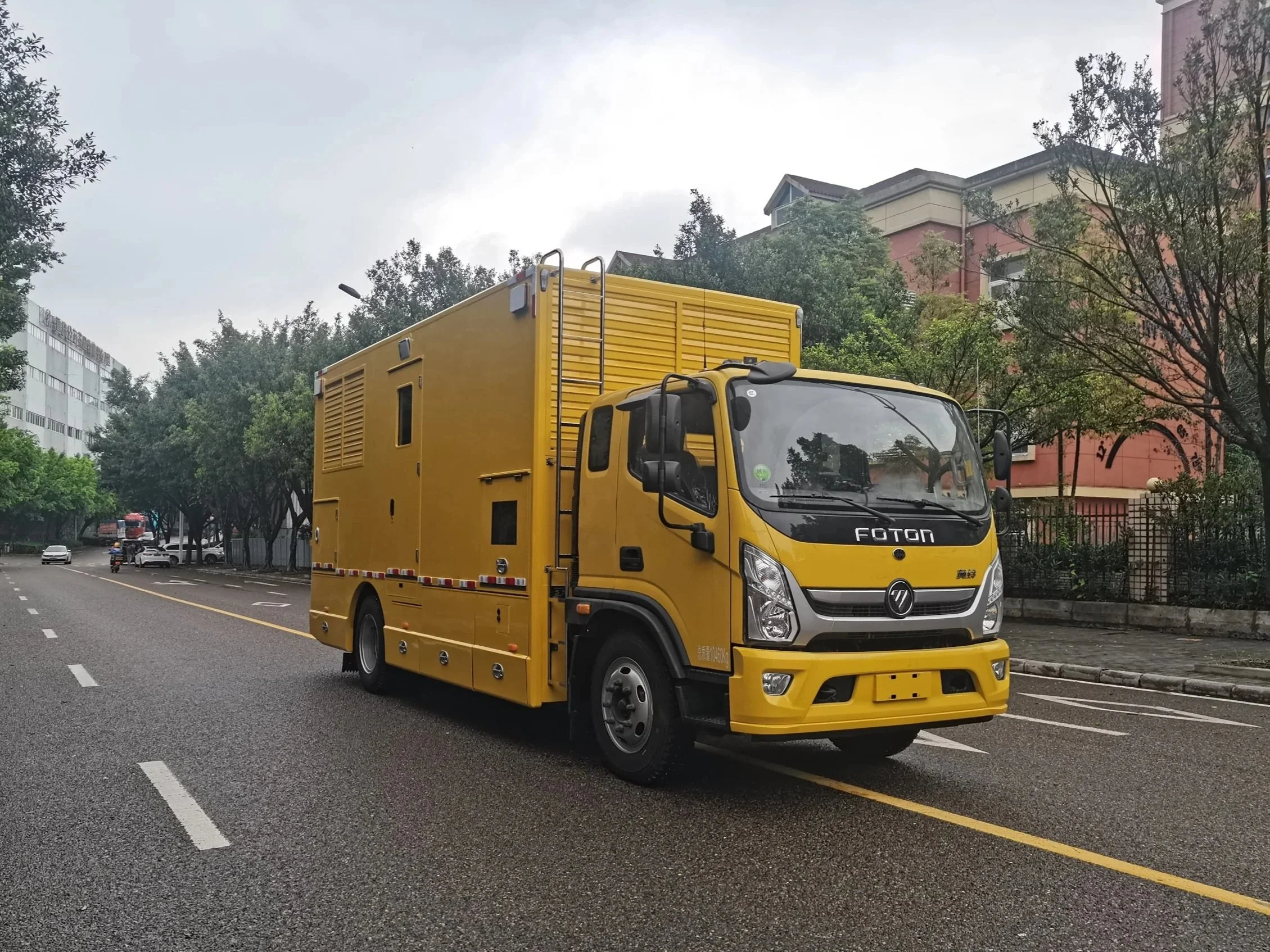

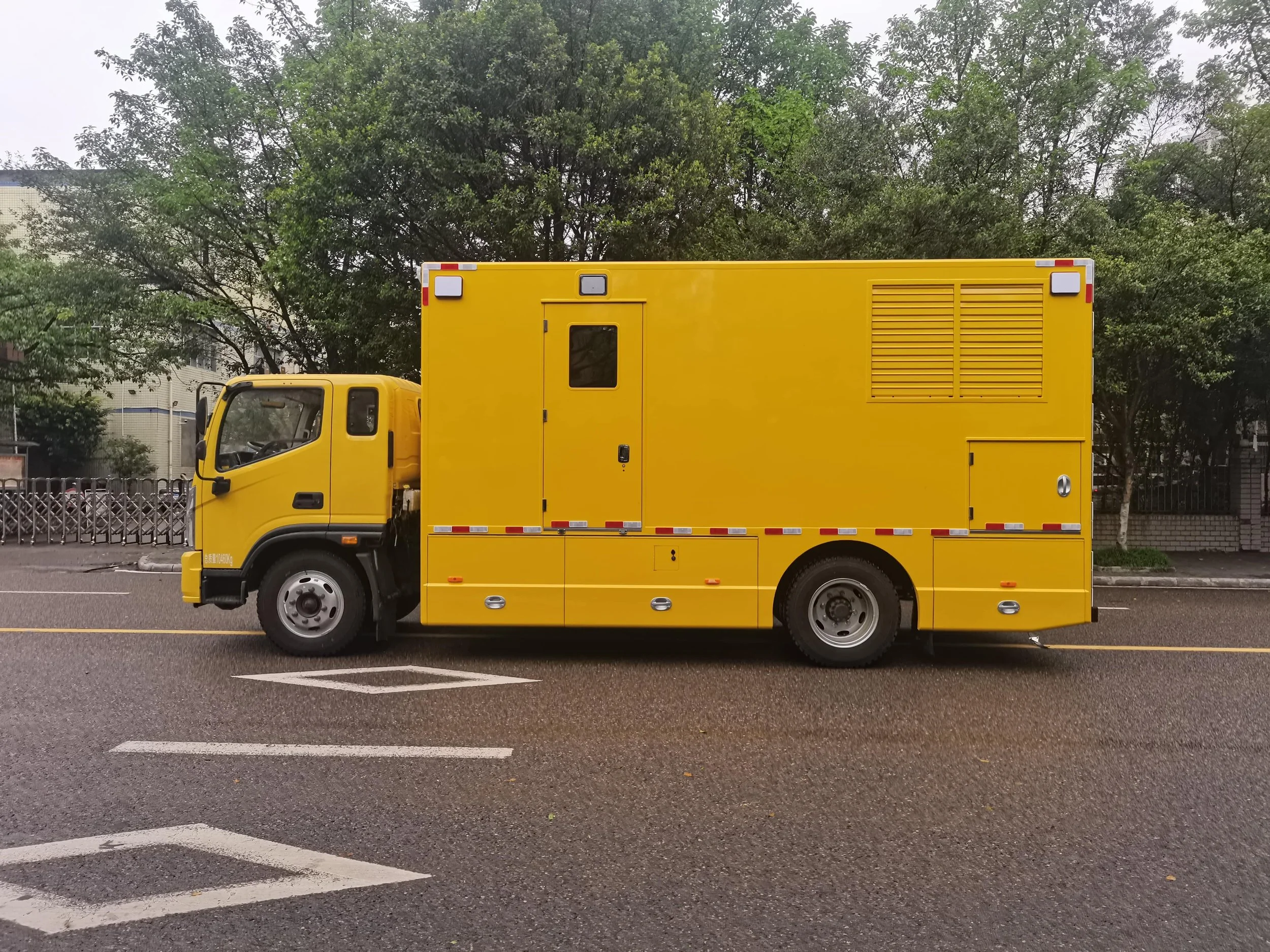

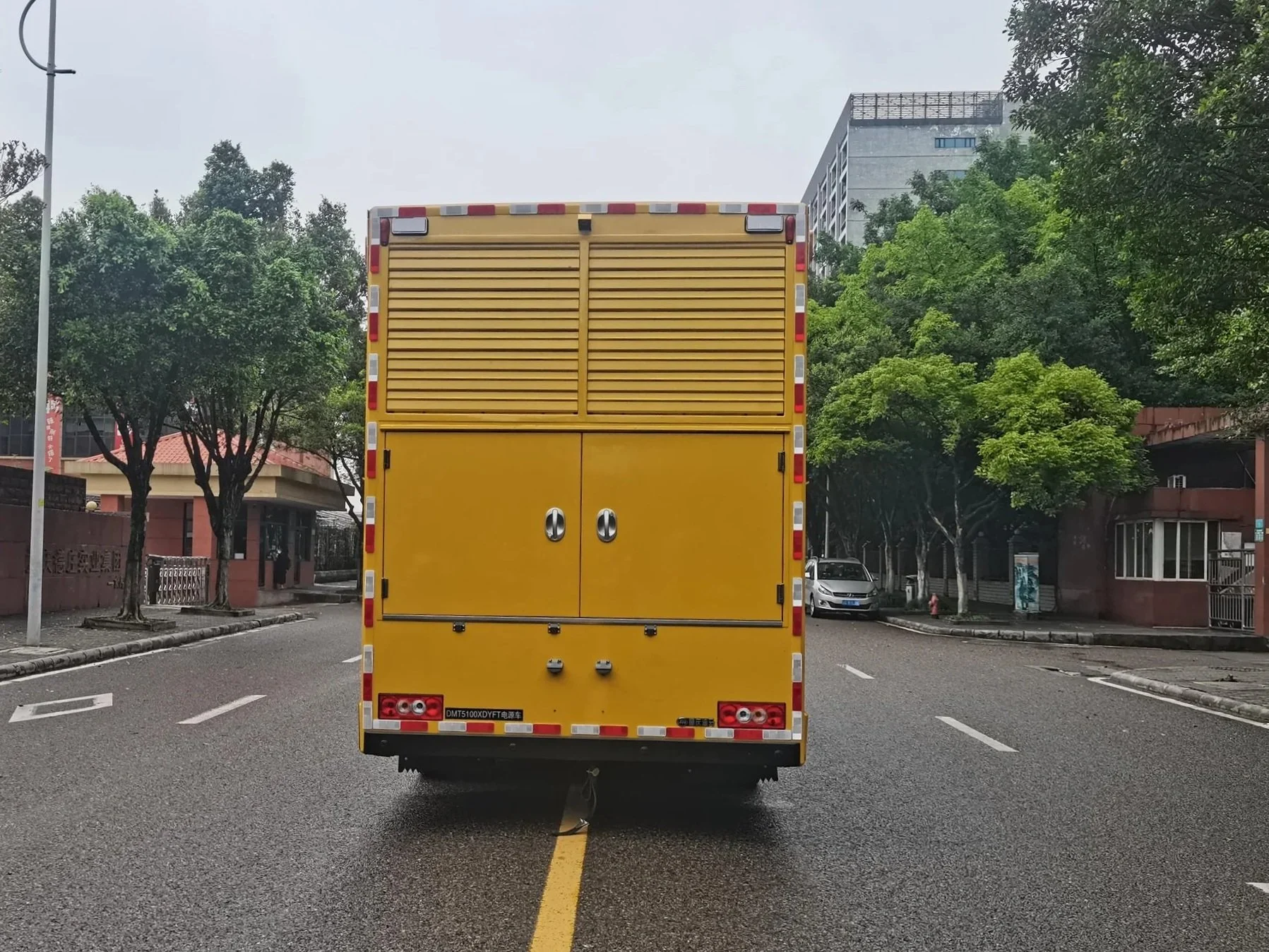

Mobile Emergency Power Vehicle

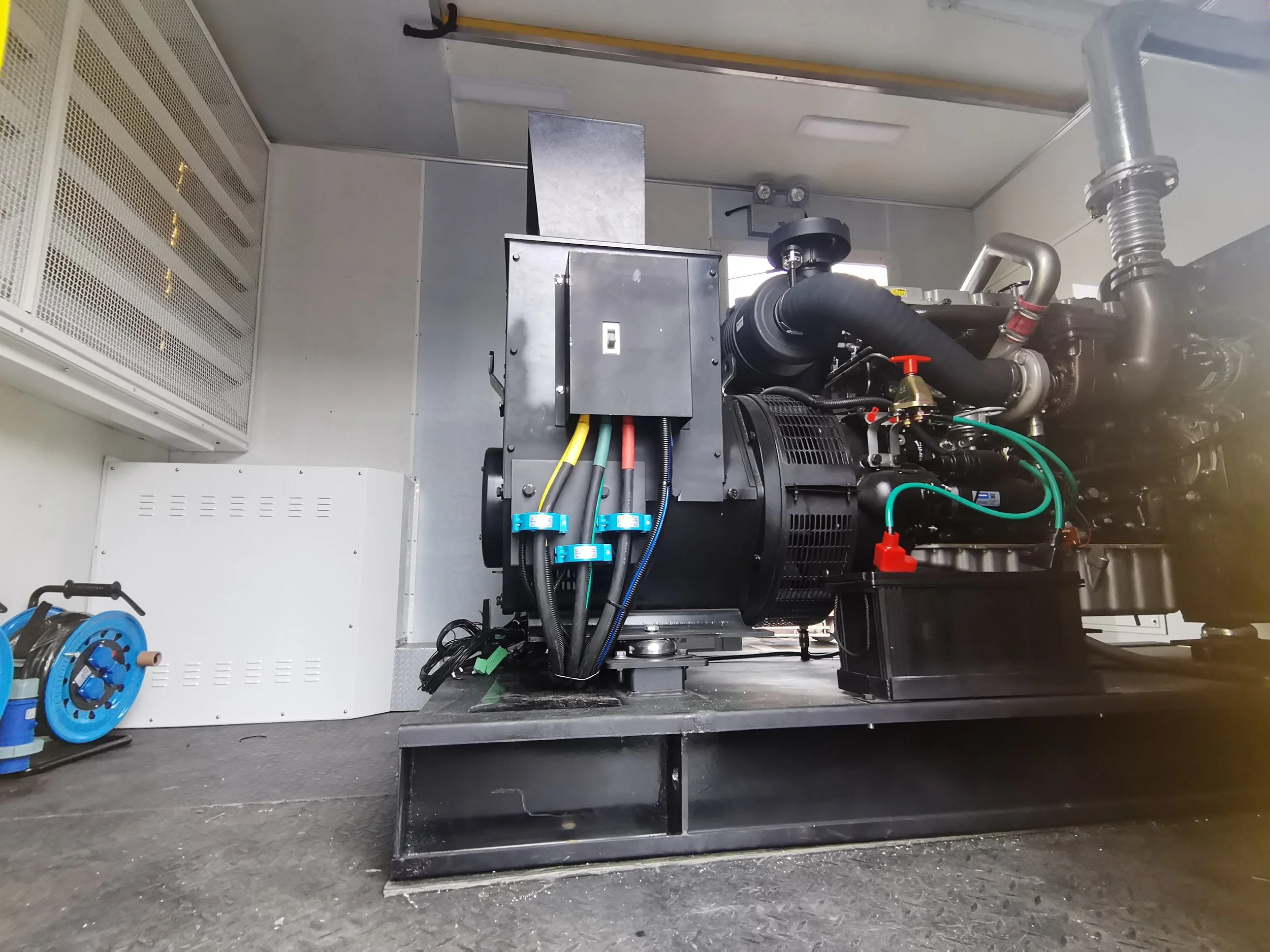

Emergency Power Generation
Equipped with a generator set (prime power 100 kW), 4 × 50 m 70 mm² flame-retardant cables, and 4 sets of quick connectors, supporting mains input and multi-circuit power output.

Smart HGM6110N Control System
Equipped with a controller with a 132×64 LCD display, supporting automatic start/stop, maintenance alerts, fault protection and timer functions.

Strobe Warning System
Fitted with strobe lights and a full-length light bar with siren for on-site operational warning.

Positioning & Navigation
Integrated driving recorder with navigation and GPS positioning for vehicle tracking and route monitoring.

Hydraulic Stabilizing System
Four-point hydraulic balance outriggers provide stable support during power generation operations.

Explosion-Proof Internal Lighting
Explosion-proof lighting installed inside the compartment for safe operation in hazardous environments.

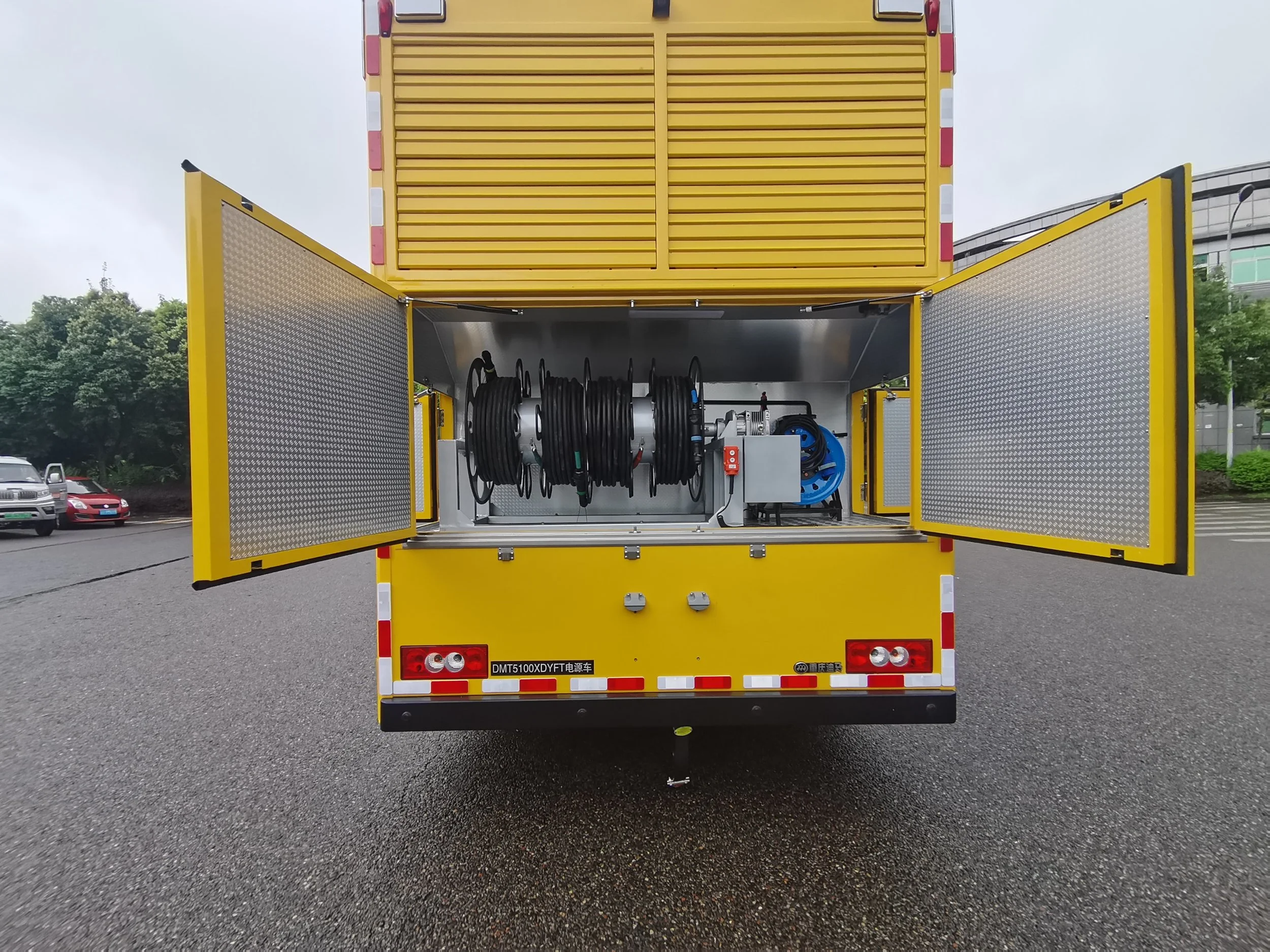

Automatic & Manual Cable Operation
Electric cable reel with stepless speed control, supporting forward and reverse operation for 4 × 50 m cables, with switchable automatic and manual modes.

Low-Noise Operation
Sound-insulated compartment with air intake and exhaust noise reduction system for quieter generator operation.

Reinforced Compartment Structure
Dima-designed high-strength steel compartment with anti-seismic and shock absorbing structure, ensuring durability and balanced weight distribution.

Plateau Operation Capability

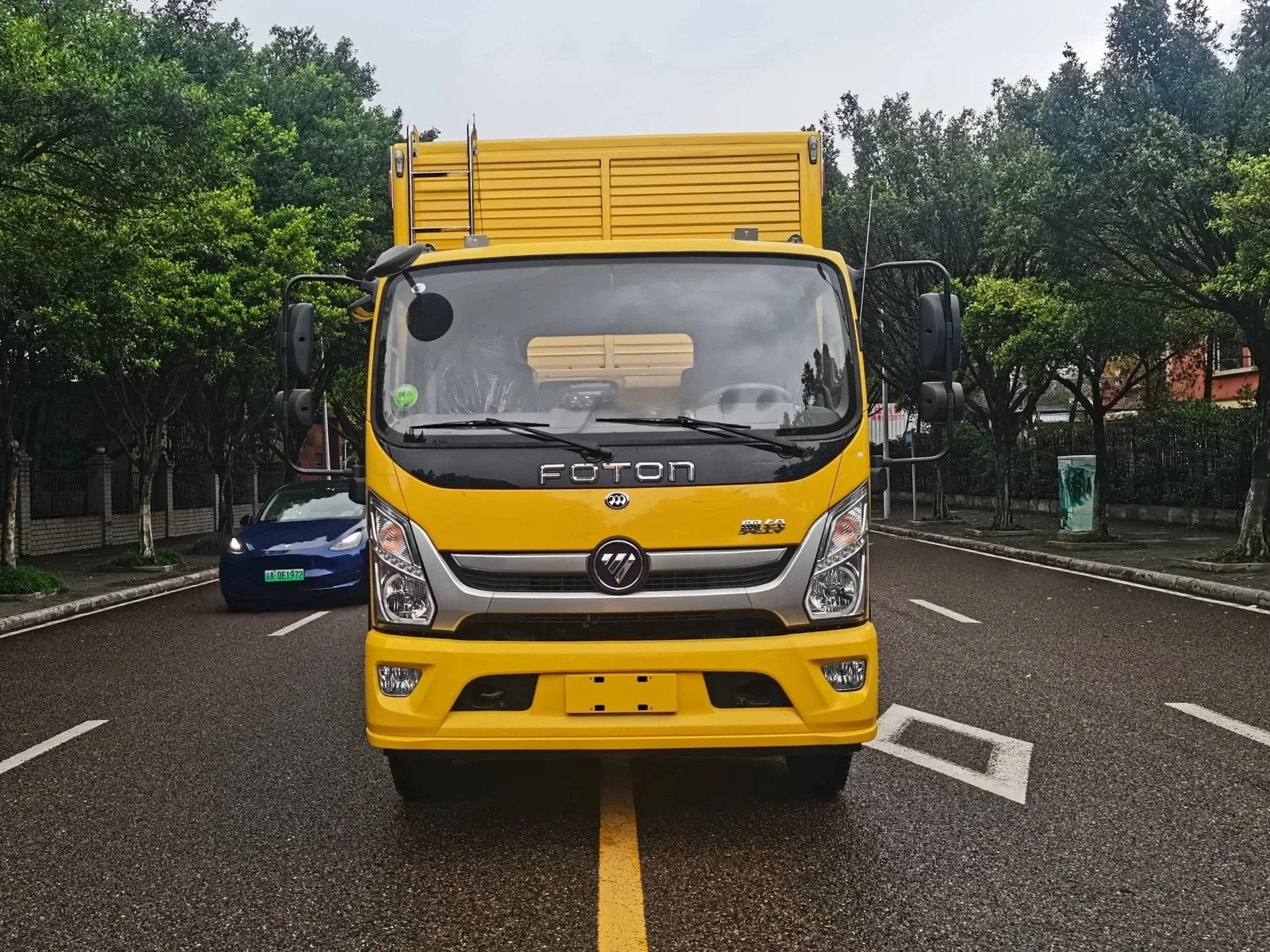

Foton BJ1148VKPEG-AD1 chassis and onboard systems are designed to operate reliably in high-altitude environments.

Full-Protection Compartment Design
Compartment features seven-layer protection, including fire resistance, flame-retardancy, water resistance, dust protection, corrosion resistance, noise reduction, and vibration isolation.

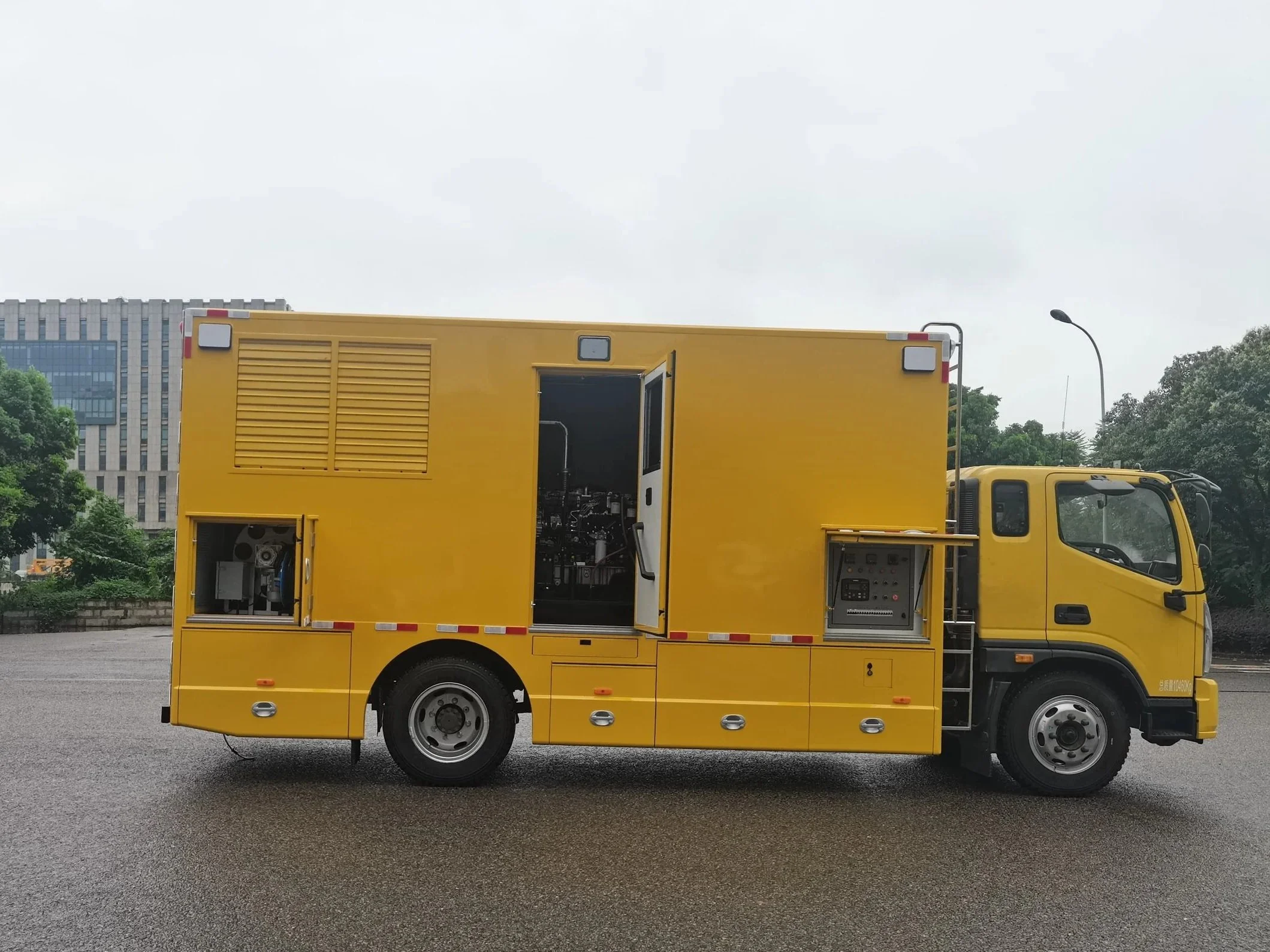

Easy Maintenance Access
Generator compartment equipped with maintenance doors and observation windows for real-time monitoring and servicing.

Large-Scale Disaster Rescue
At earthquake or flood sites with destroyed power grids, it provides 100kW backup power to rescue tools, lighting, and communication vehicles for continuous operations.

Field Base Camp Power Supply
In remote areas during disaster recovery or field operations, it can supply power to mobile kitchens, shower vehicles, and accommodation units, to create a fully functional base camp.

Emergency Power for Critical Facilities
Provides backup power for hospitals, command centers, and essential infrastructure during grid failures and large-scale power outages.

This vehicle is available on FOTON, FORD, and ISUZU chassis platforms and can be configured with optional drone systems for aerial surveillance and real-time monitoring. Contact us to discuss configuration options and specifications for your application.
