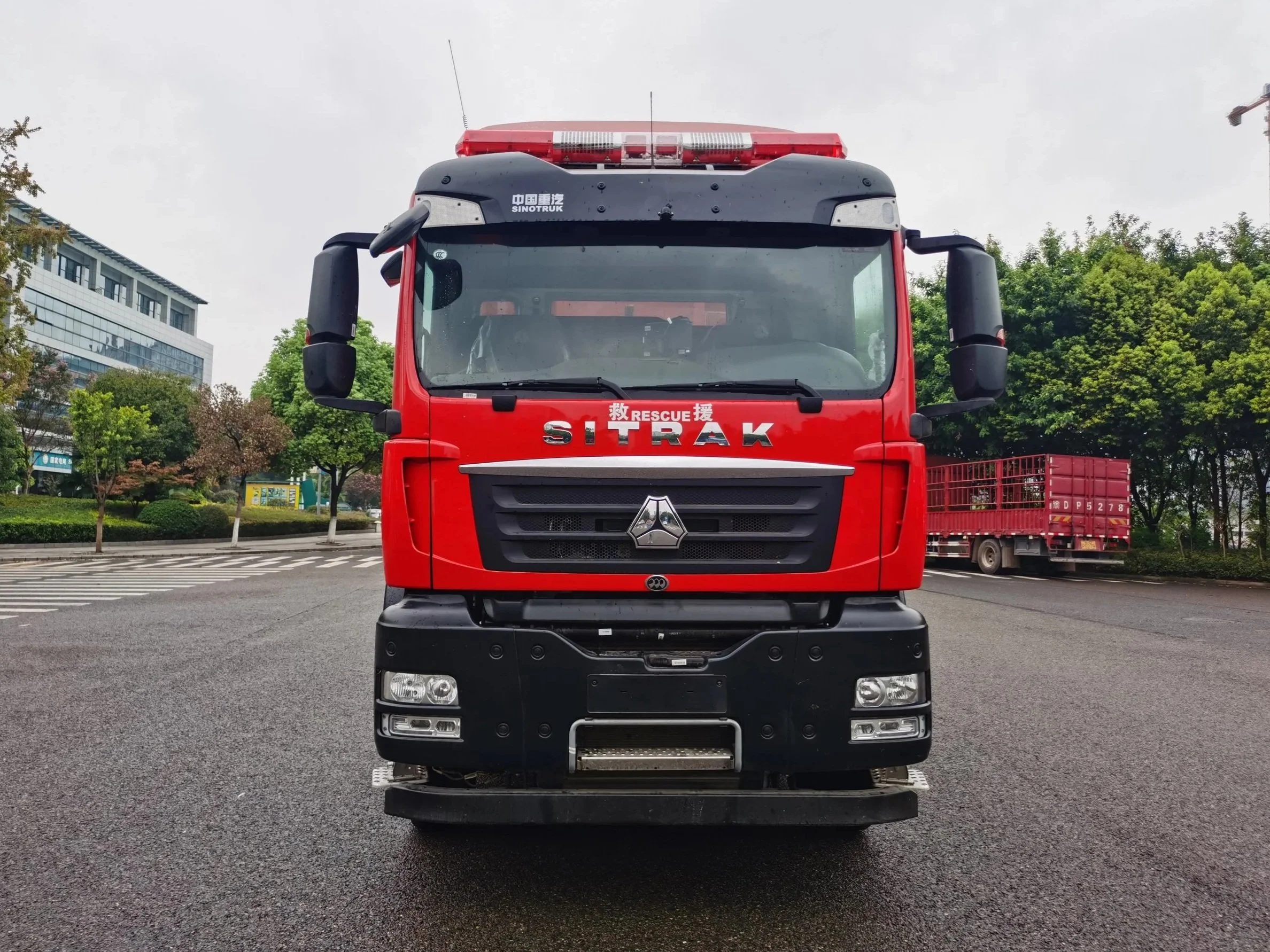

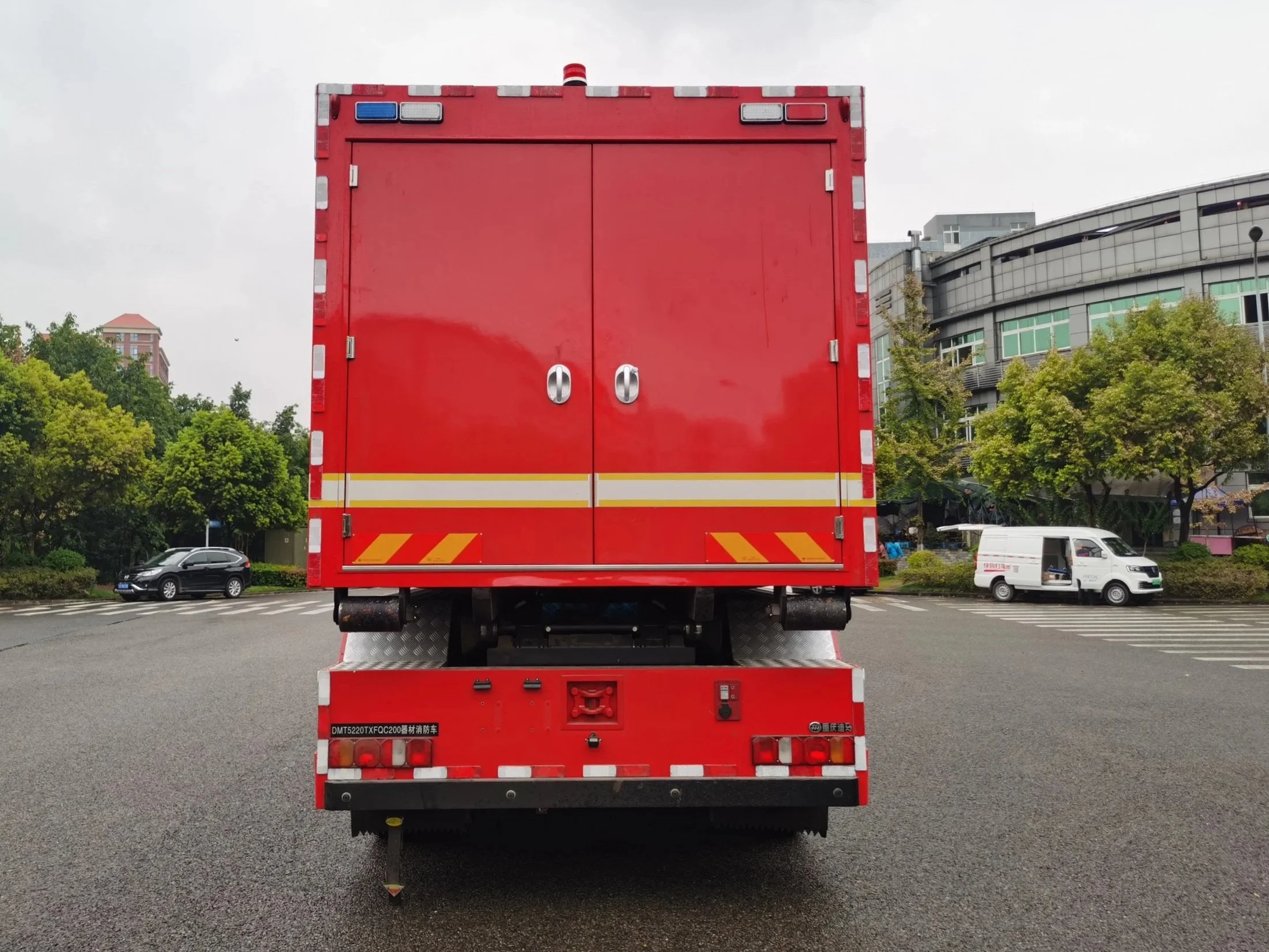

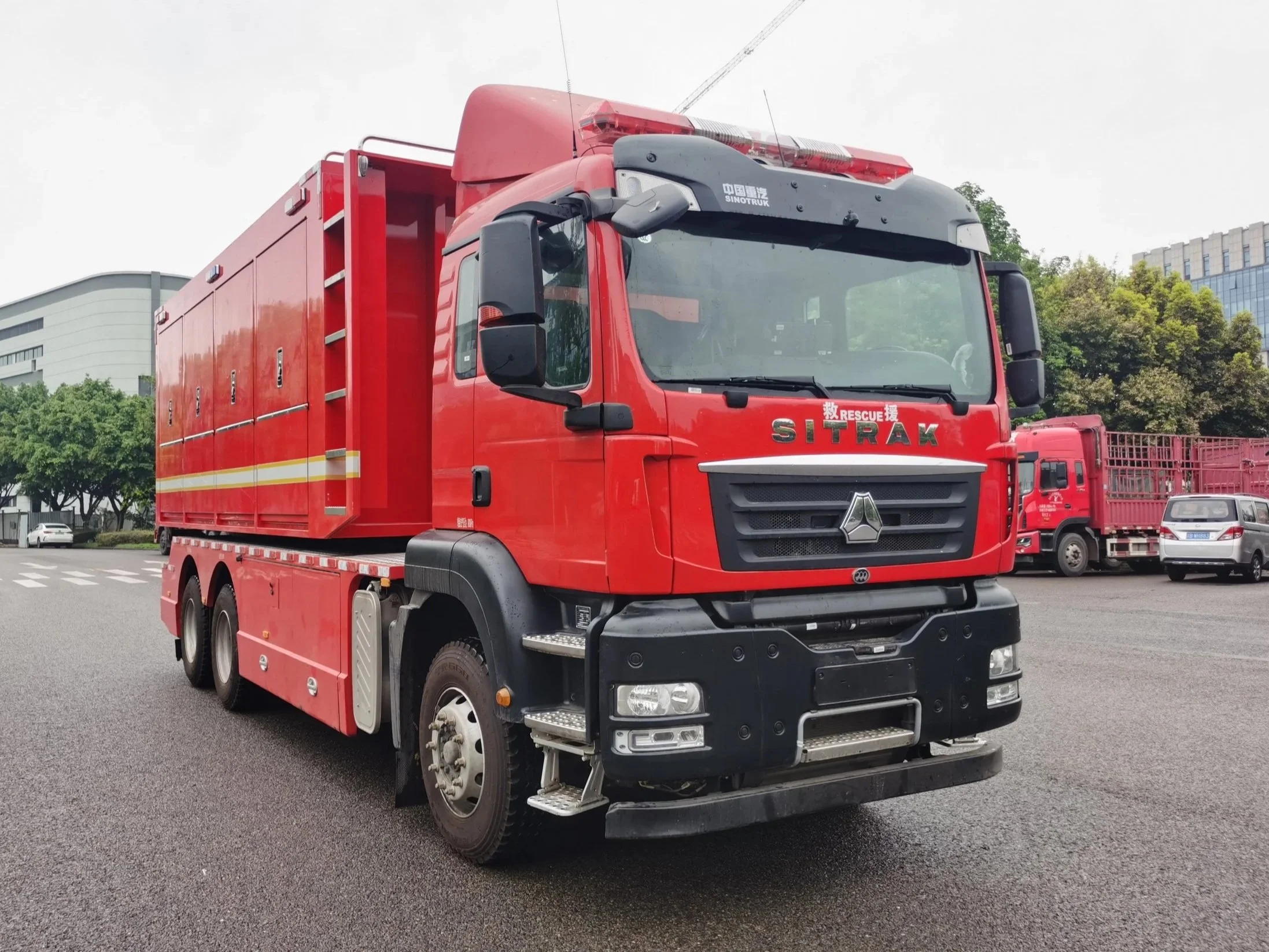

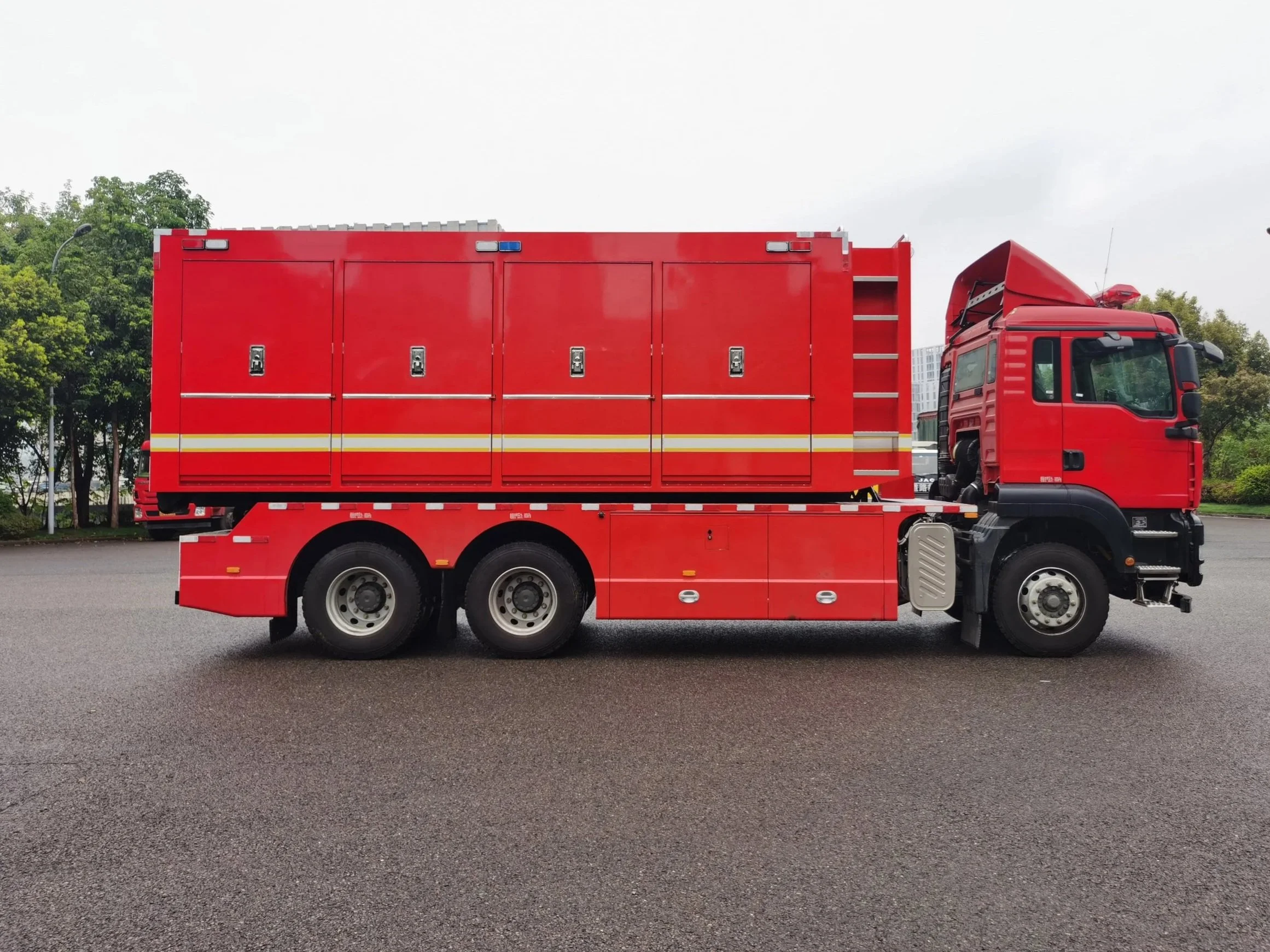

Self-Loading Equipment Transport Fire Vehicle

Pull Arm Loading & Unloading System
Equipped with a hydraulic pull-arm system with up to 15,000 kg loading and unloading capacity, enabling heavy equipment modules to be loaded within 60 seconds and unloaded within 40 seconds to support rapid emergency deployment.

Modular Equipment Box System
Includes four independent aluminum alloy equipment modules designed for rapid loading and unloading via the pull-arm system. Internal trolley-based organization with shock-absorbing wheels, automatic locking, and adjustable storage structure supports fast, secure, and flexible equipment deployment.

Wing Door Access System
The left and right sides of each module are equipped with wing-opening doors, while the rear adopts a double-opening tailgate design and the lower skirt uses flip-up access doors for convenient equipment retrieval.

Integrated Power & Electrical System
Equipped with a front roof-mounted LED warning light bar of at least 1.6 m, 200 W siren and amplification system, side and rear strobe warning lights, and integrated electrical support for field deployment and safety signaling.

Rapid Deployment Capability
Designed for 1–2 person operation, with opening time ≤5 minutes and withdrawal time ≤3 minutes, supporting fast response and quick equipment deployment at emergency scenes.

Heavy-Duty Chassis Platform
Built on a 6×4 chassis platform with strong carrying capacity and reliable road performance, supporting operation in unpaved, gravel, snow, mud, and sandy road conditions.

Extended Operational Range & Durability
Driving range exceeds 600 km under steady-speed conditions, with continuous powered operation of over 24 hours, system service life over 15 years, and equipment MTBF of at least 2000 hours.

All-Environment Operational Readiness
Designed for reliable operation across demanding environmental conditions, including exterior equipment temperatures from -35°C to 55°C, in-vehicle equipment temperatures from -10°C to 45°C, and storage temperatures from -40°C to 60°C.

Modular Multi-Mission Equipment Management
Four modular trolleys support classified storage of large and heavy equipment, with dedicated fixation and adjustable internal racks that allow rapid retrieval, nearby access, and simultaneous multi-person operation.

Integrated Safety & Compliance System
Equipped with panoramic imaging, reversing radar, tow hook, and complete lighting and signaling systems, while meeting relevant road transport and safety standards.

Rapid Equipment Deployment at Rescue Sites
At rescue, firefighting, or emergency support scenes, the vehicle’s hydraulic loading and unloading system enables mission modules to be deployed quickly on site, allowing responders to access tools, supplies, and heavy equipment without delay.

Multi-Mission Modular Standby
Different equipment modules can be prepared in advance according to mission needs, allowing the vehicle to support rescue, firefighting, emergency support, and other specialized operations with flexible deployment.

On-Site Equipment Support and Resupply
Once deployed, the module can serve as an organized on-site equipment access point, allowing responders to retrieve tools, materials, and support equipment more efficiently during ongoing operations.

Night Lighting and Equipment Resupply
A lighting module can be deployed on site to support nighttime rescue operations, while other equipment modules provide power, cable reels, and additional support equipment as needed.

Rapid CBRN Decontamination Deployment
A CBRN decontamination module can be deployed quickly to establish an on-site decontamination point, providing protective equipment, spray systems, absorbents, and power support for continuous operation.

This vehicle is available on SITRAK, DONGFENG, VOLVO, and HOWO chassis platforms and can be configured with optional drone systems for aerial surveillance and real-time monitoring. Contact us to discuss configuration options and specifications for your application.
