TK-QY200
Medium Diesel Pushback Tractor

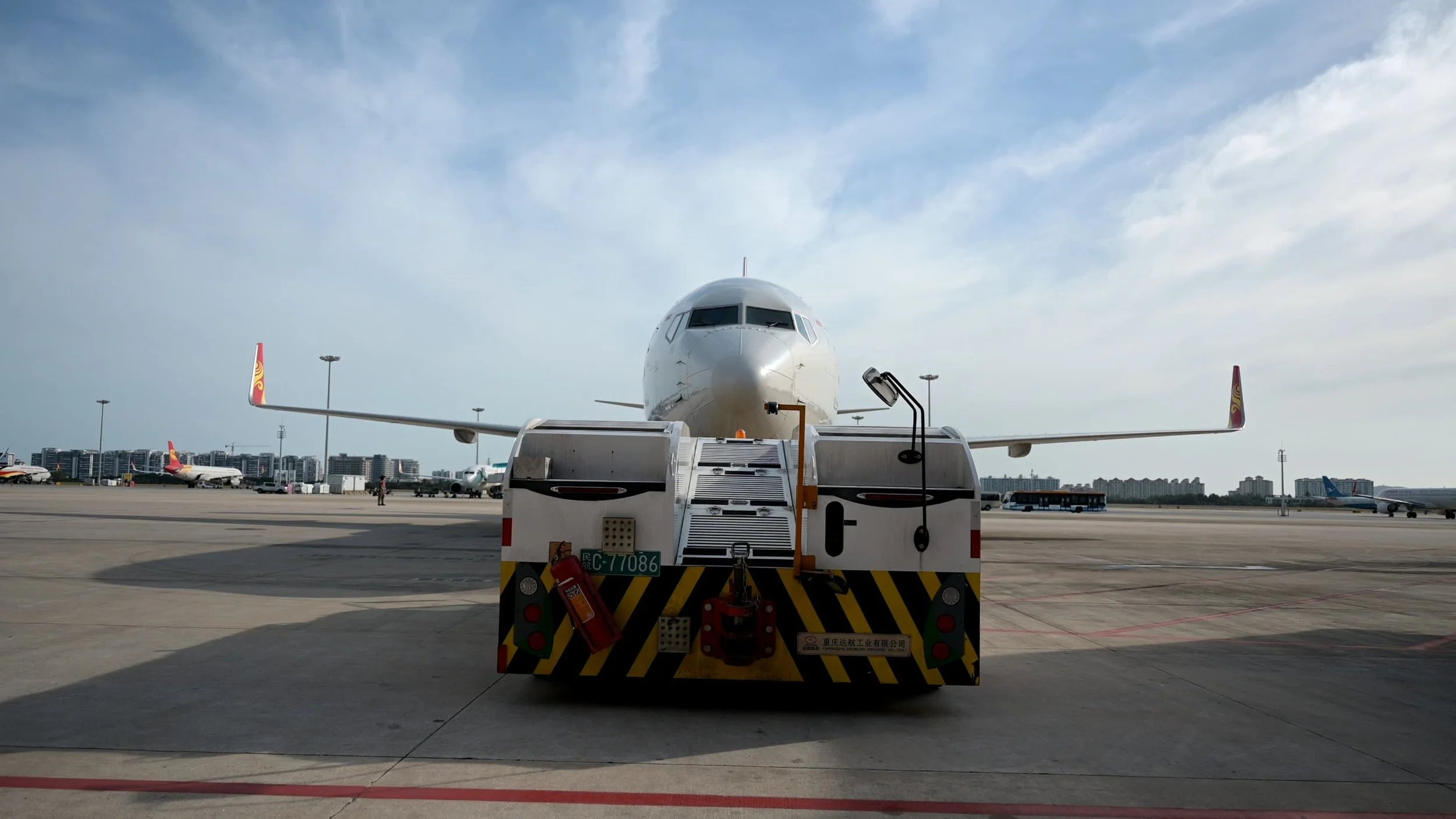

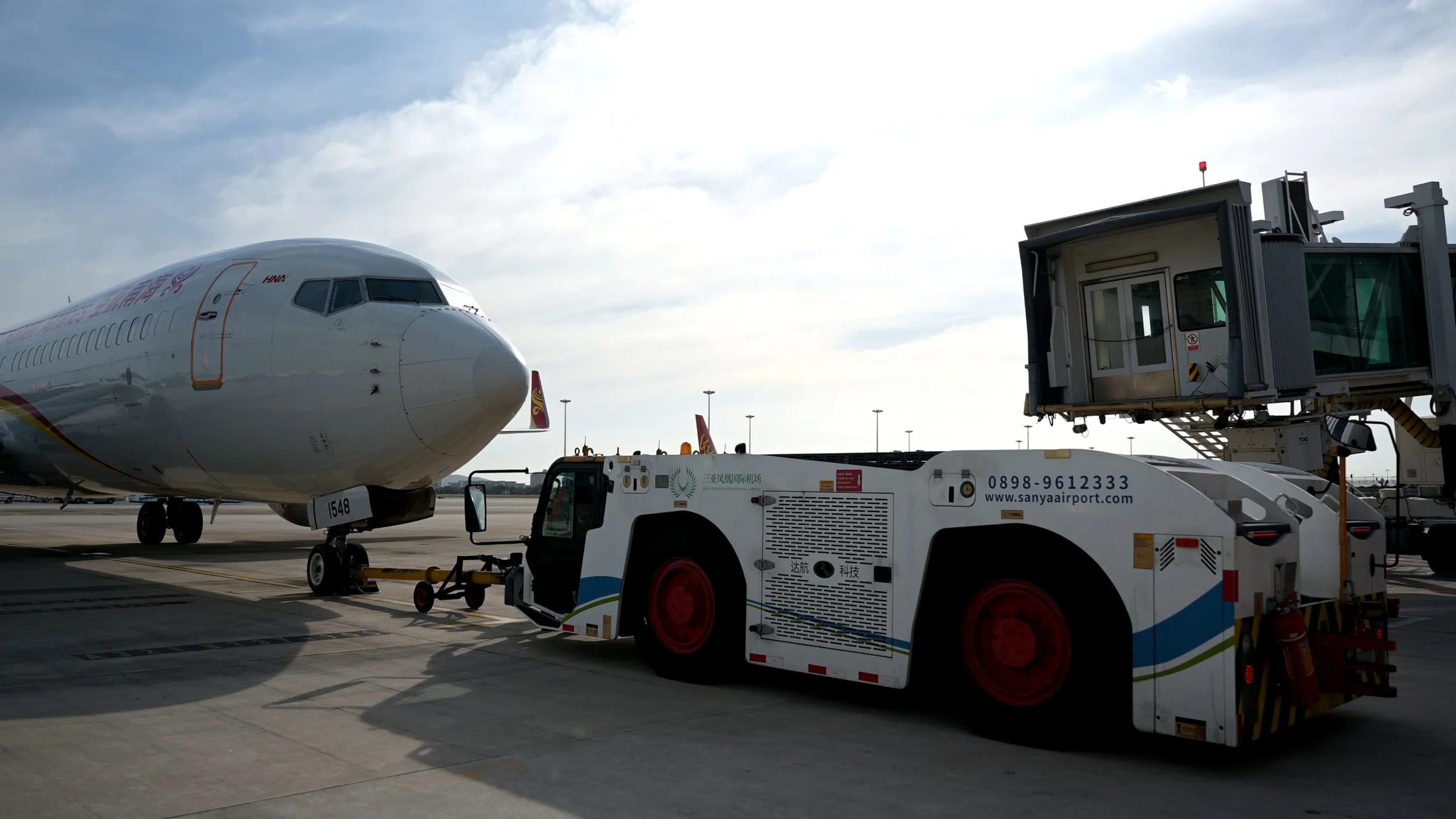

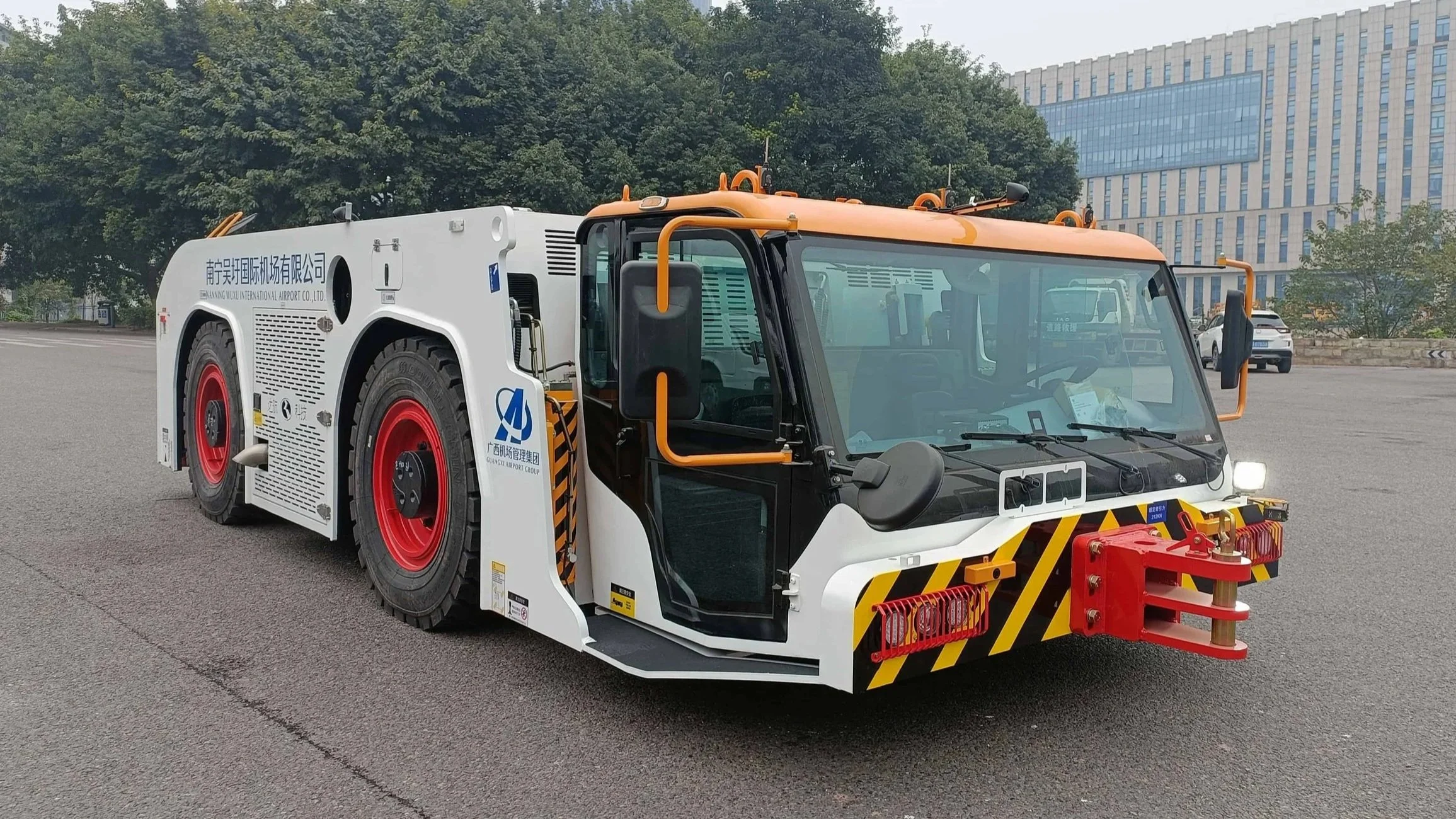

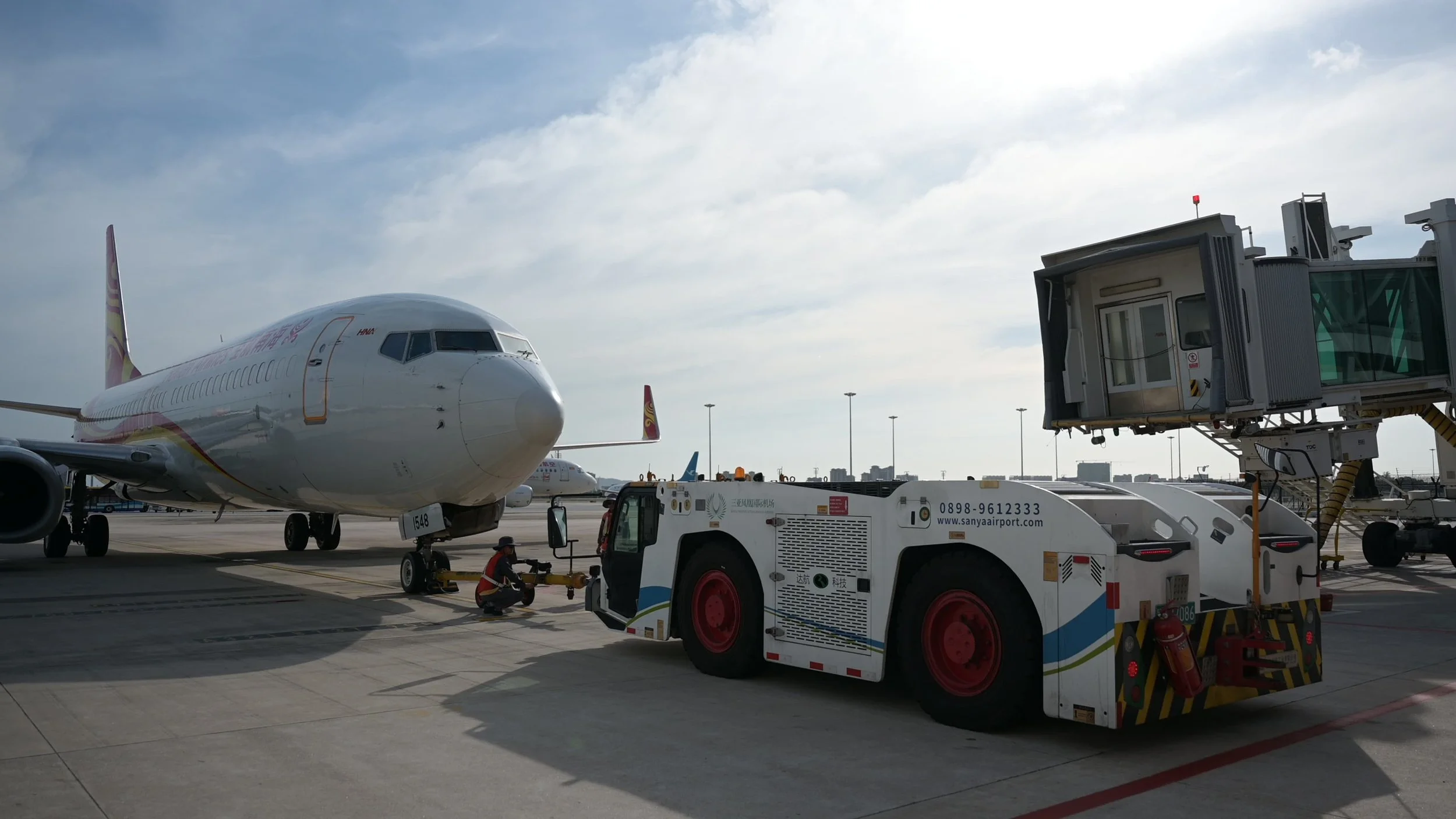

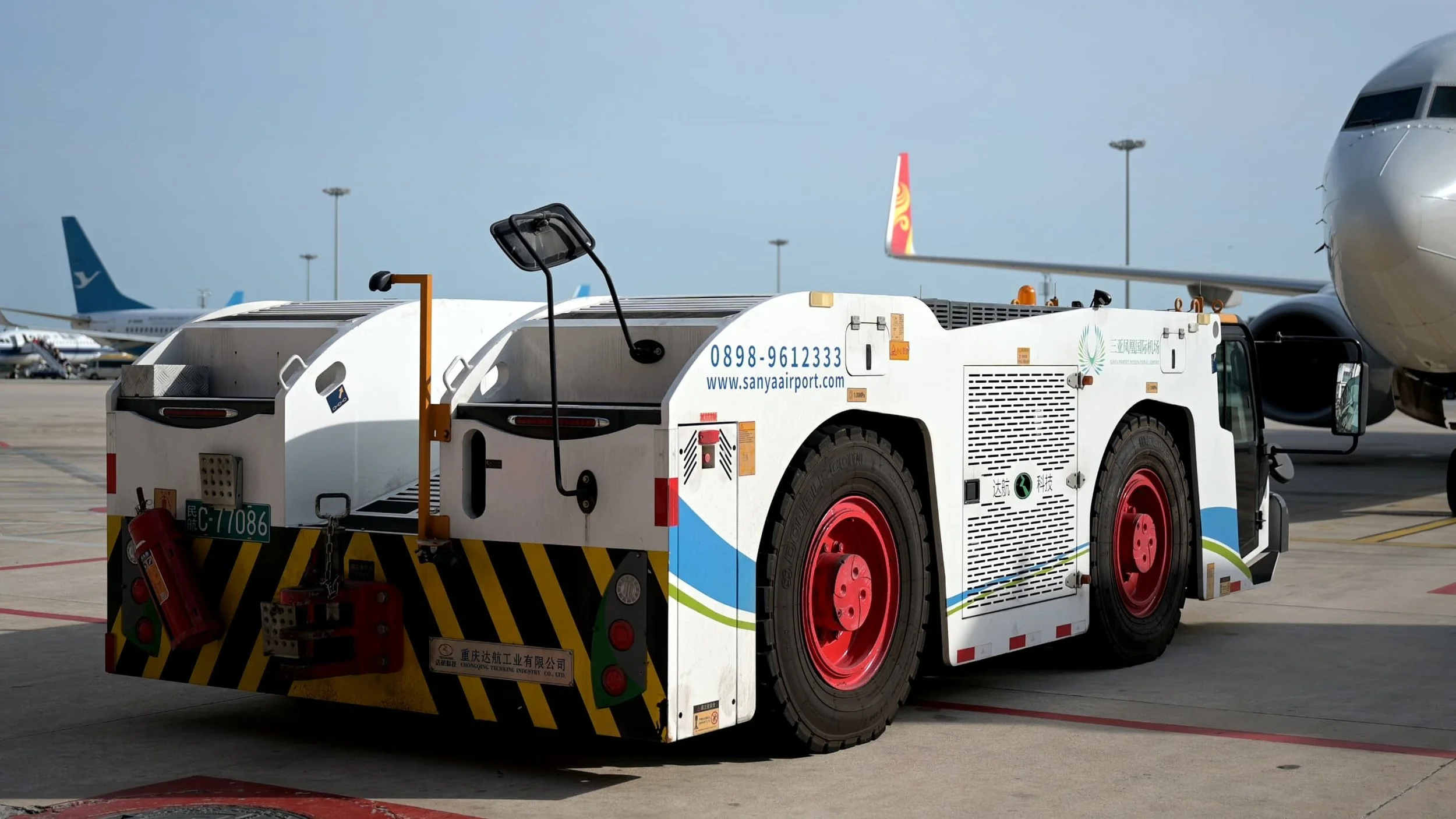

The TK-QY200 is a medium-size, diesel-powered aircraft tractor designed for pushback and towing of regional, narrow-body and medium-size aircraft up to 322 tonnes MTOW.
Its compact low-profile design and 1,650 mm overall height enable unrestricted operation beneath large aircraft. A four-wheel-drive powertrain, three-mode all-hydraulic steering with automatic straightening, and a lifting cab deliver stable and reliable towing, precise low-speed control and exceptional apron maneuverability.
Specifications
Features
High-Traction Drive System
A 162 kW engine, four-wheel drive, and heavy-duty transmission deliver 212 kN of controlled drawbar pull for 322-ton aircraft.
Multi-Mode Steering and Auto-Straightening
Electronically selectable front-wheel, four-wheel and crab steering with automatic straightening ensures straight-line tracking after turns.
Elevating Cab with Anti-Collision Protection
The cab lifts 700 mm with an anti-collision switch that automatically lowers it upon obstacle contact to prevent aircraft impact.
Operator Visibility and Monitoring
Panoramic cab visibility, front/rear cameras, adjustable tow-hook mirrors and a tow-hook light ensure safe, confident operation.
Safety Redundancy & Interlocks
Triple-circuit brakes, dual-line hydraulic braking, emergency steering, emergency stop and electrical interlocks prevent misoperation.
High Availability & Independent Cooling
Engine, transmission, hydraulics and air conditioning each feature independent coolers for reliable continuous apron operation.

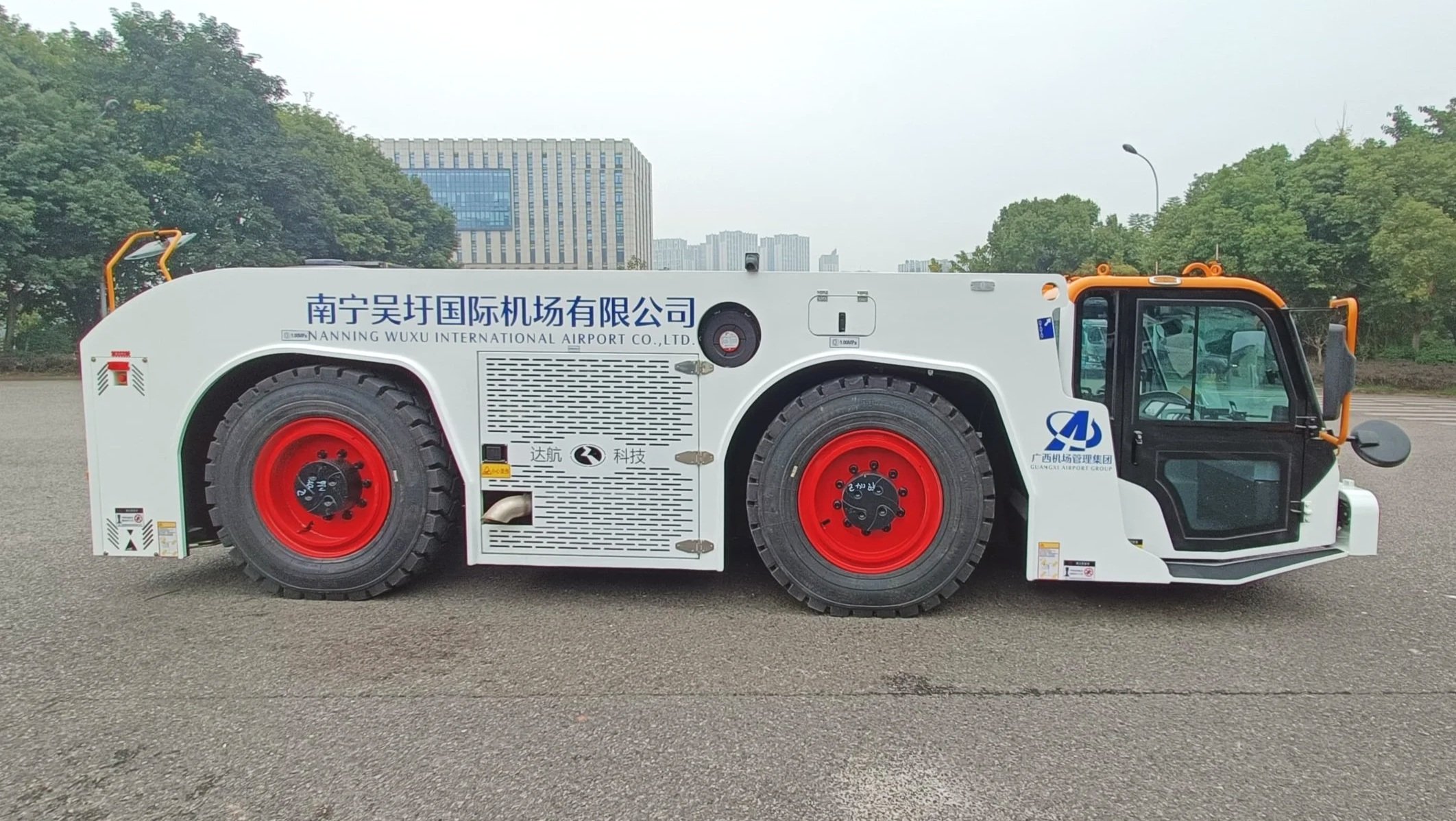

Compact Low-Profile Heavy-Duty Chassis
At just 1,650 mm high, the rugged chassis with hydraulic jacks enables operation beneath large aircraft and easy maintenance.
Emergency Measures & Rapid Evacuation
Emergency steering, emergency manual brake assist, an emergency stop button and a tow-hook light ensure safe night-time and emergency operations.
Aircraft Compatibility
Designed for pushback and towing operations involving regional, narrow-body and selected wide-body aircraft up to 322 t MTOW.
Representative aircraft include Airbus A318/A319/A320/A321, A300/A310 and selected A330/A340 variants; Boeing 727, 737 Classic/NG, 757, 767 and selected 777/787 variants; as well as MD-80/MD-90, MD-11, ERJ-145, E190, Fokker 50/100 and MA60 aircraft within the stated MTOW range.
Standards
Designed with reference to applicable IATA AHM, civil aviation and aircraft tow tractor requirements.
Related Products
Medium Electric Pushback Tractor
TK-EQY280

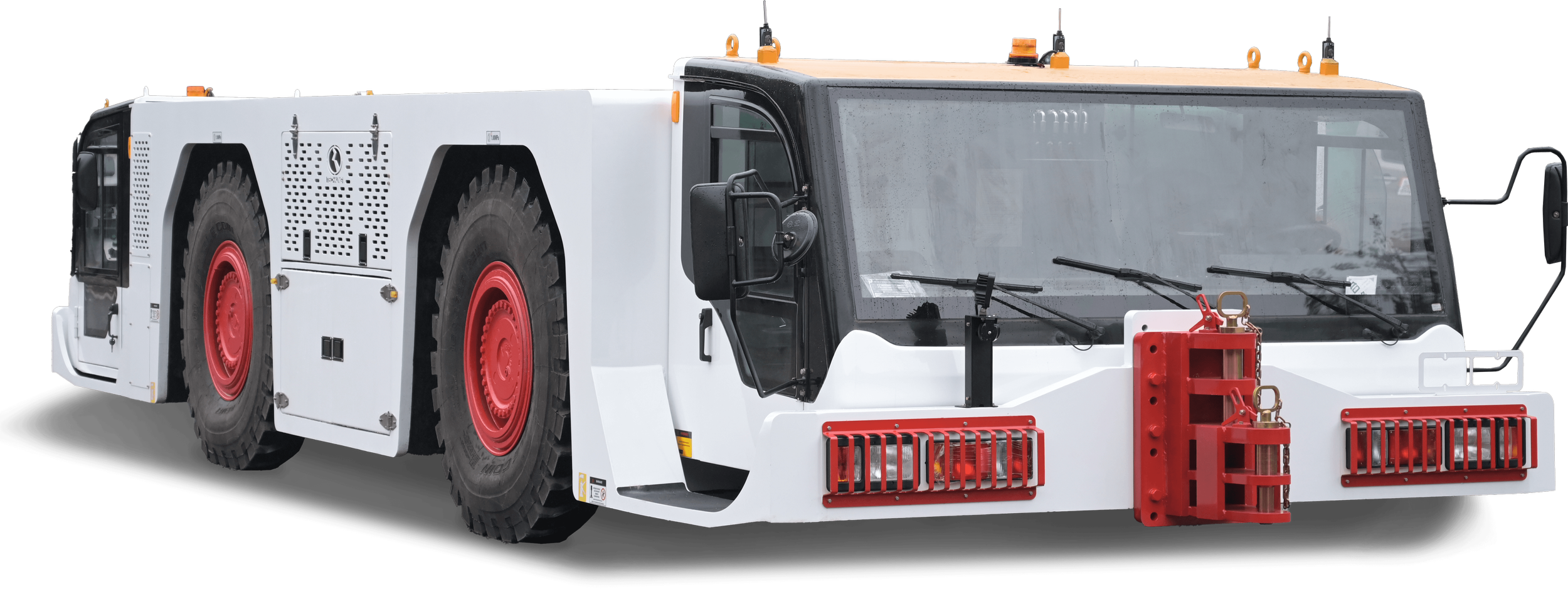

Large Diesel Pushback Tractor
TK-QY400

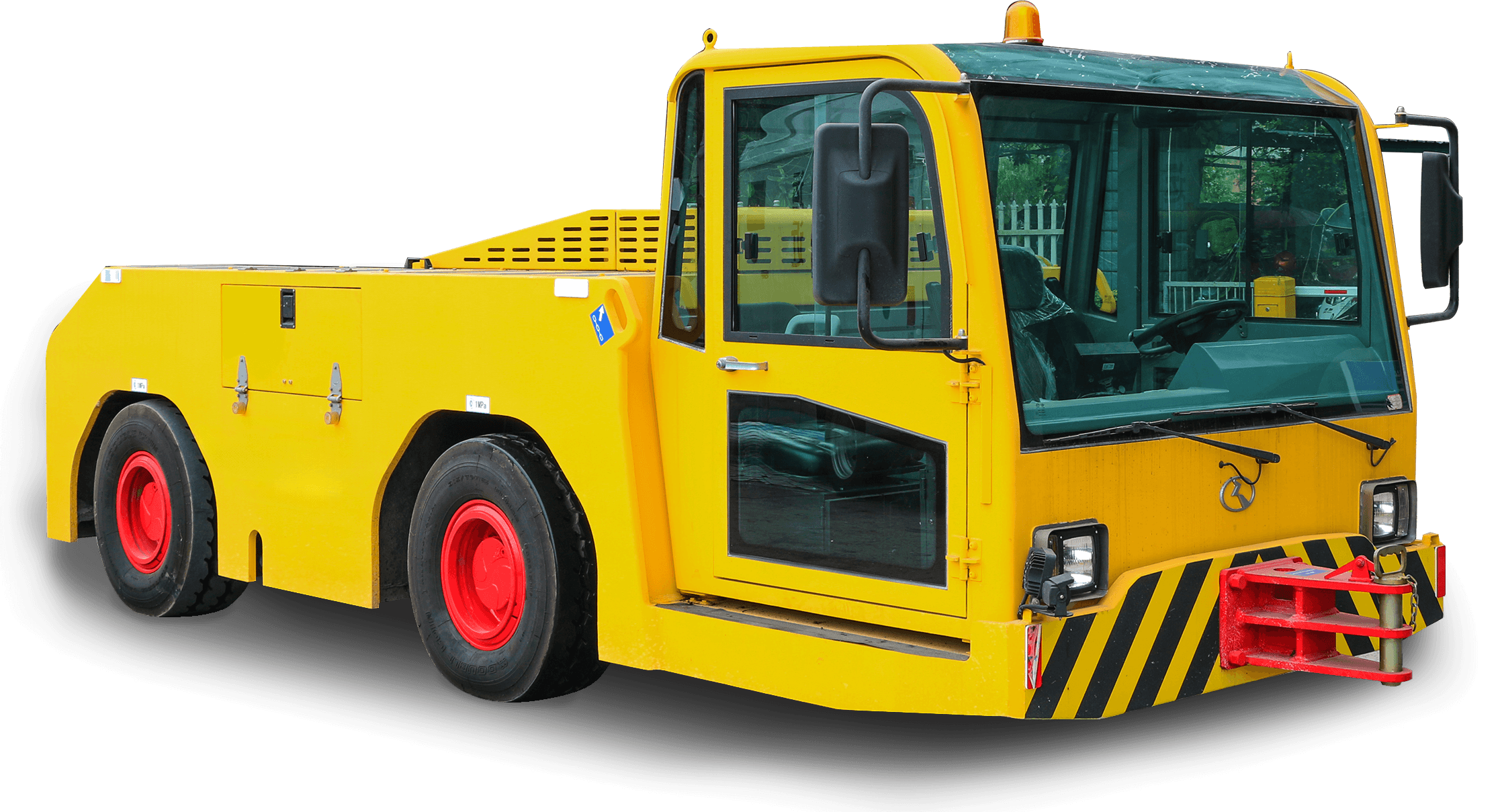

Small Diesel Pushback Tractor
