TK-QY400
Large Diesel Pushback Tractor

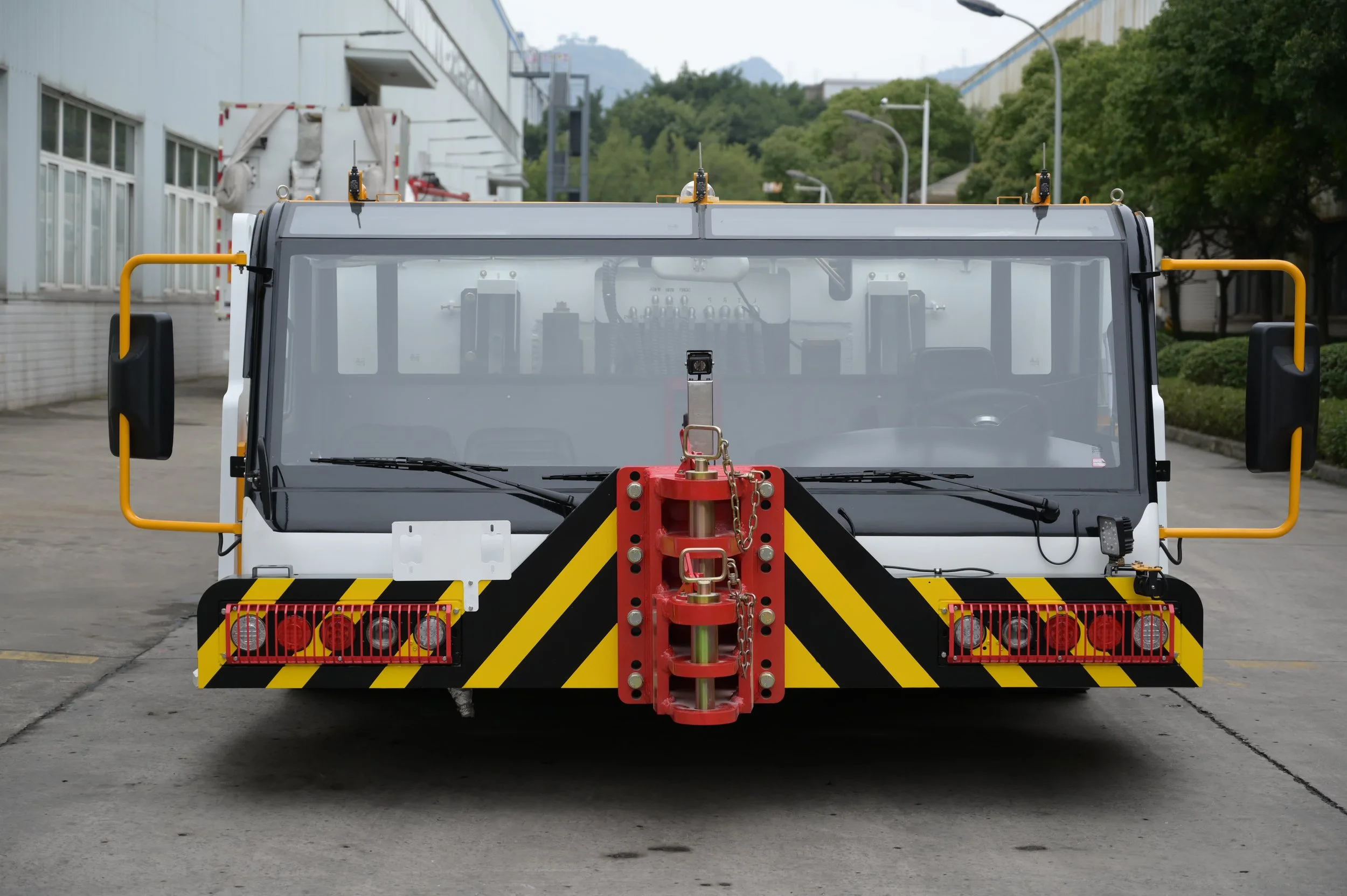

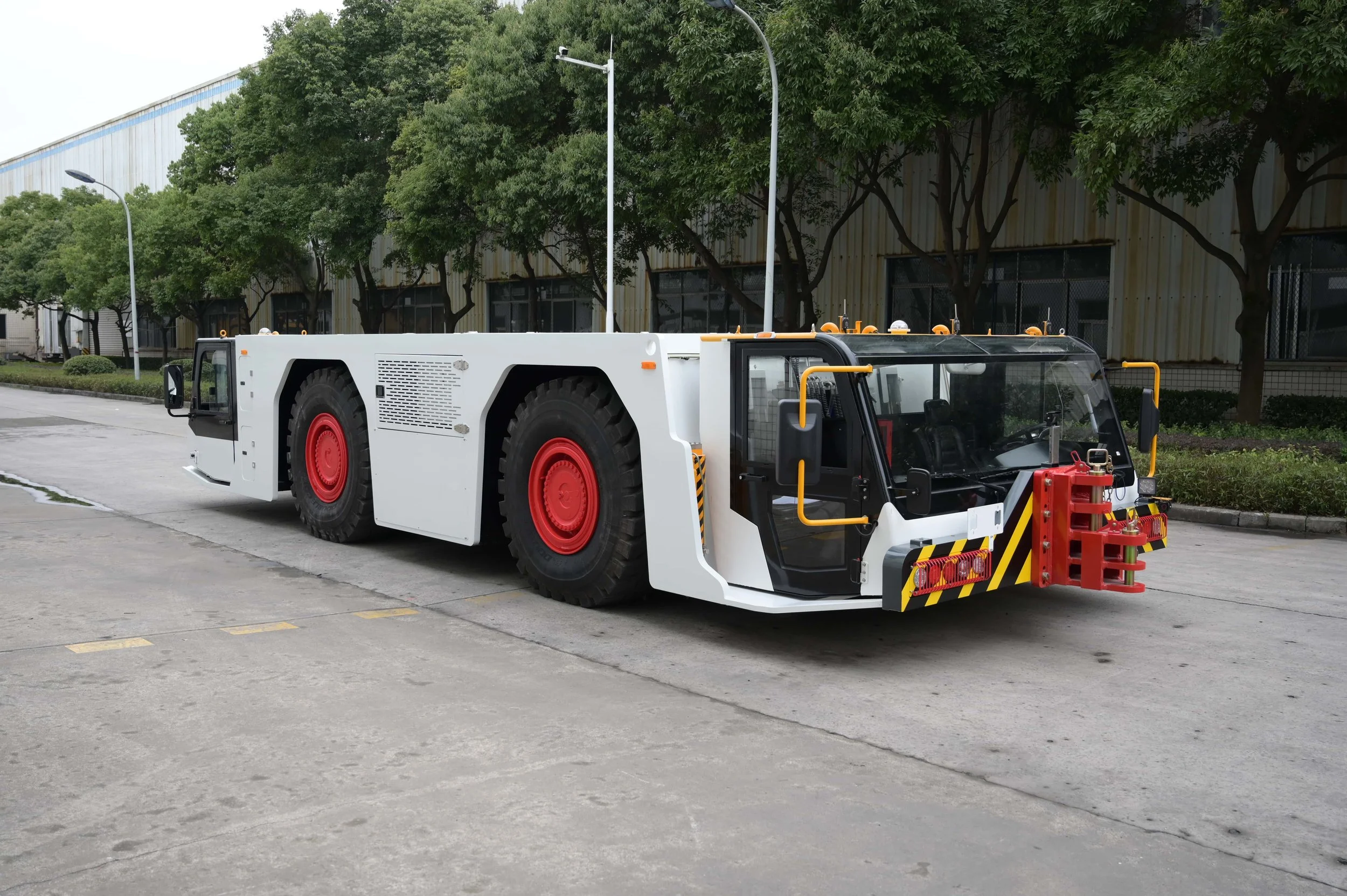

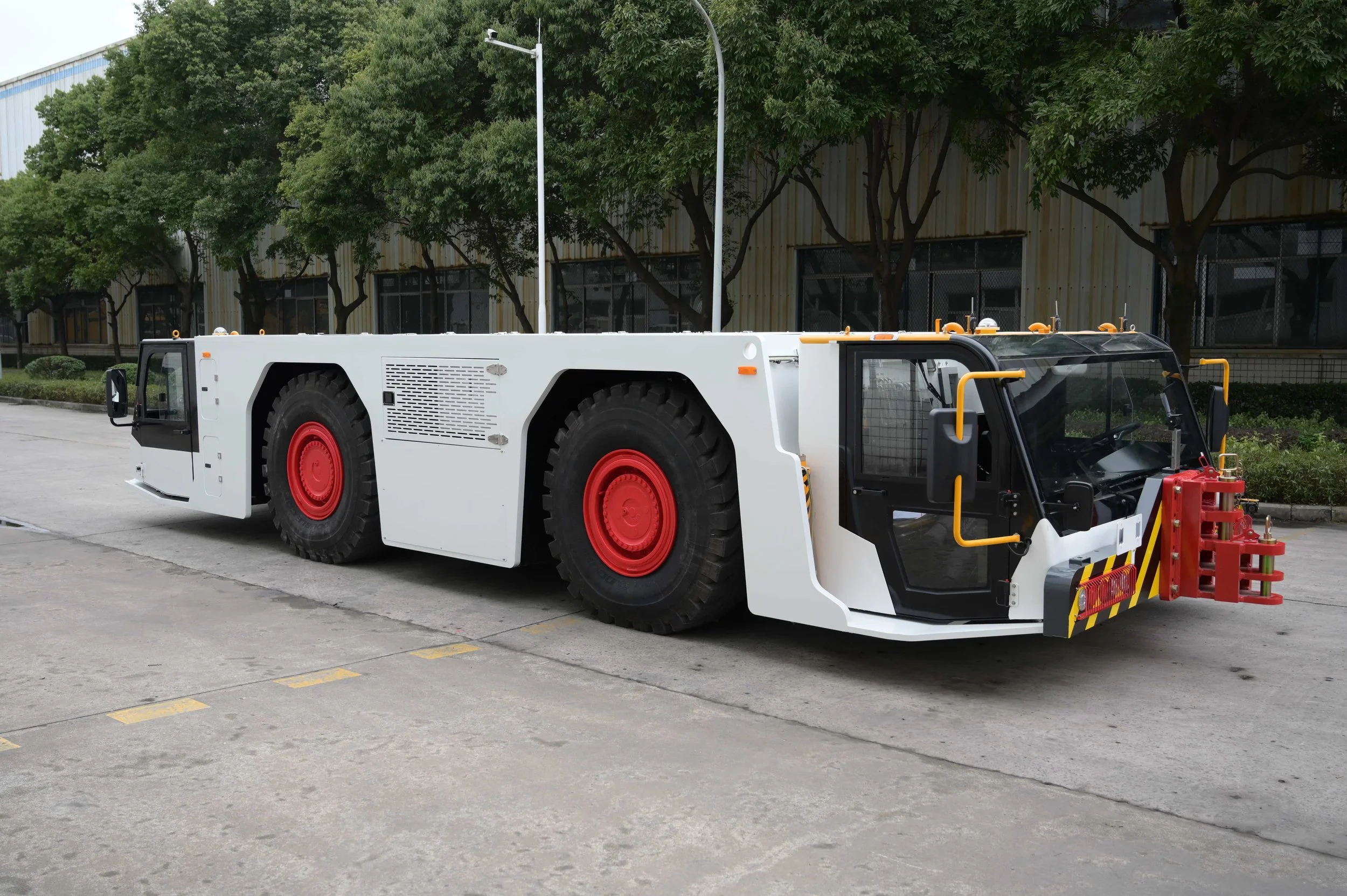

The TK-QY400 is a heavy-duty, high-capacity, diesel-powered aircraft tractor designed for pushback and towing of regional, narrow-body and wide-body aircraft up to 500 tons MTOW.
Its 1,670 mm low-profile chassis supports unrestricted operation beneath large aircraft. A four-wheel-drive powertrain, four-mode all-hydraulic steering with automatic straightening, and dual cabs for bi-directional operation deliver stable high-traction towing, precise low-speed control and exceptional apron maneuverability.
Specifications
Features
High-Traction Drive System
A 316 kW diesel engine, four-wheel drive, and heavy-duty transmission deliver 420 kN of controlled drawbar pull for 500-tonne aircraft.
Multi-Mode Steering and Auto-Straightening
Electronically selectable front, rear, four-wheel and crab steering with automatic straightening ensures straight-line tracking after turns.
Dual-Cab Bi-Directional Operation

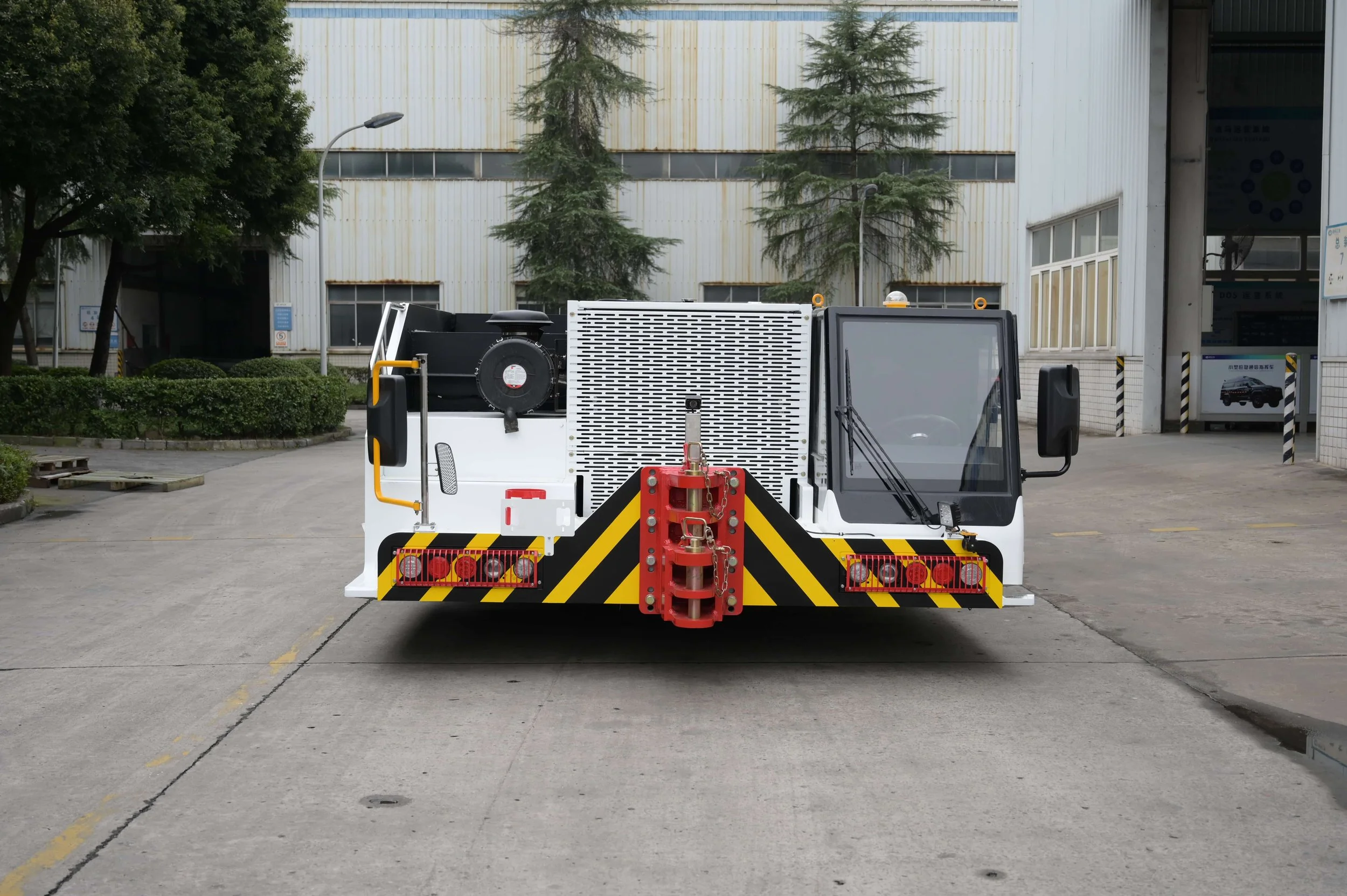

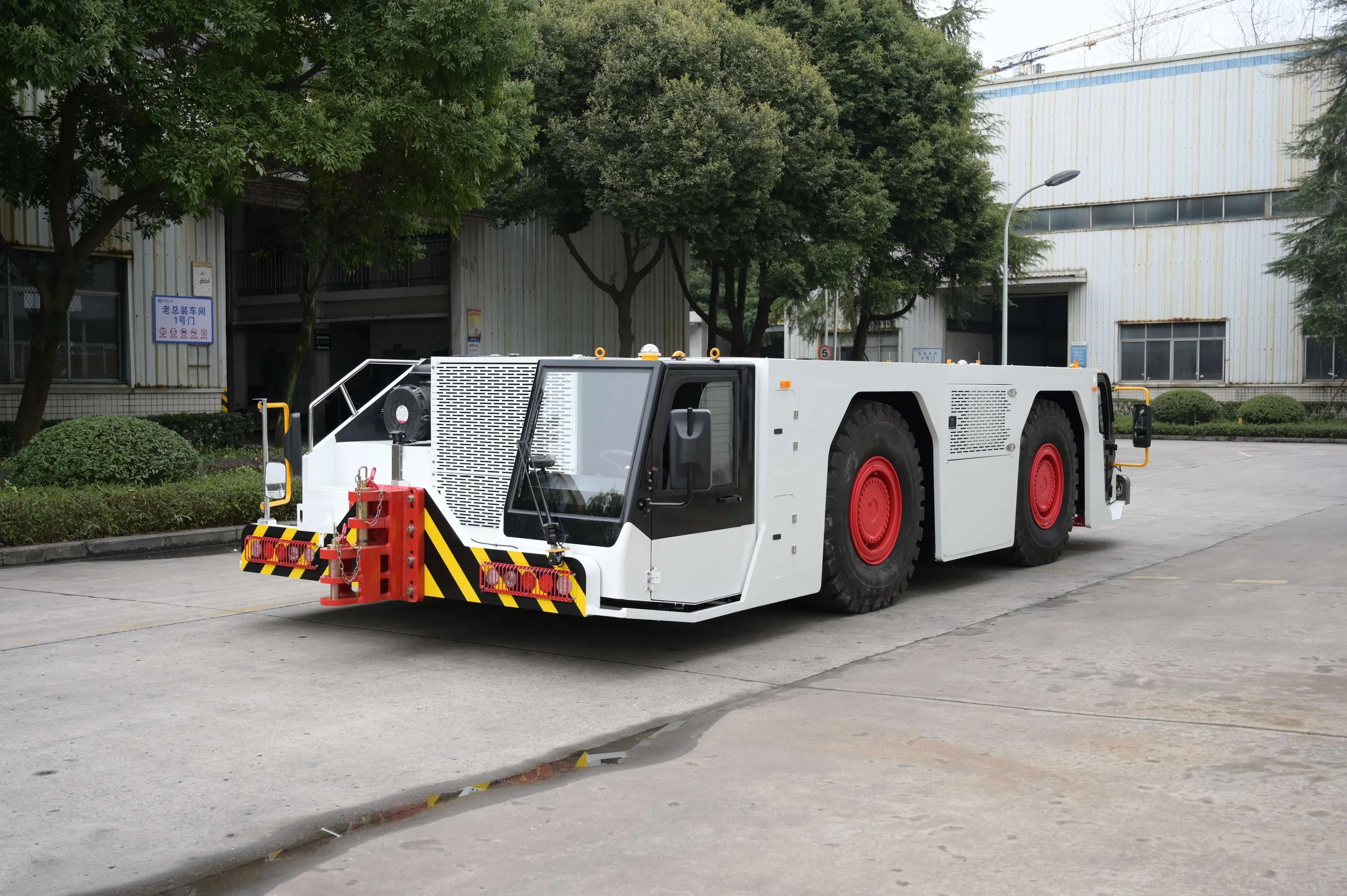

Front and rear cabs allow convenient driving direction switching, delivering exceptional maneuverability in congested apron areas.
Elevating Cab with Anti-Collision Protection
The front cab lifts 700 mm with an anti-collision switch that automatically lowers it upon obstacle contact to prevent aircraft impact.
Operator Visibility and Monitoring
Panoramic cab visibility, front/rear cameras, adjustable tow-hook mirrors and a tow-hook light ensure safe, confident operation.
Safety Redundancy & Interlocks
Triple-circuit brakes, dual-line hydraulic braking, emergency steering, emergency stop and electrical interlocks prevent misoperation.
High Availability & Independent Cooling
Engine, transmission, hydraulics and air conditioning each feature independent coolers for reliable continuous apron operation.
Compact Low-Profile Heavy-Duty Chassis
At just 1,670 mm high, the rugged chassis with hydraulic jacks enables operation beneath large aircraft and easy maintenance.
Aircraft Compatibility
Designed for pushback and towing operations involving regional, narrow-body and wide-body aircraft up to 500 t MTOW.
Representative aircraft include Airbus A318/A319/A320/A321, A300/A310 and A330/A340; Boeing 727, 737 Classic/NG, 747, 757, 767, 777 and 787; as well as MD-80/MD-90, MD-11, ERJ-145, E190, Fokker 50/100, MA60 and An-124 aircraft within the stated MTOW range.
Standards
Designed with reference to applicable IATA AHM, civil aviation and aircraft tow tractor requirements.
Related Products
Medium Electric Pushback Tractor
TK-EQY280

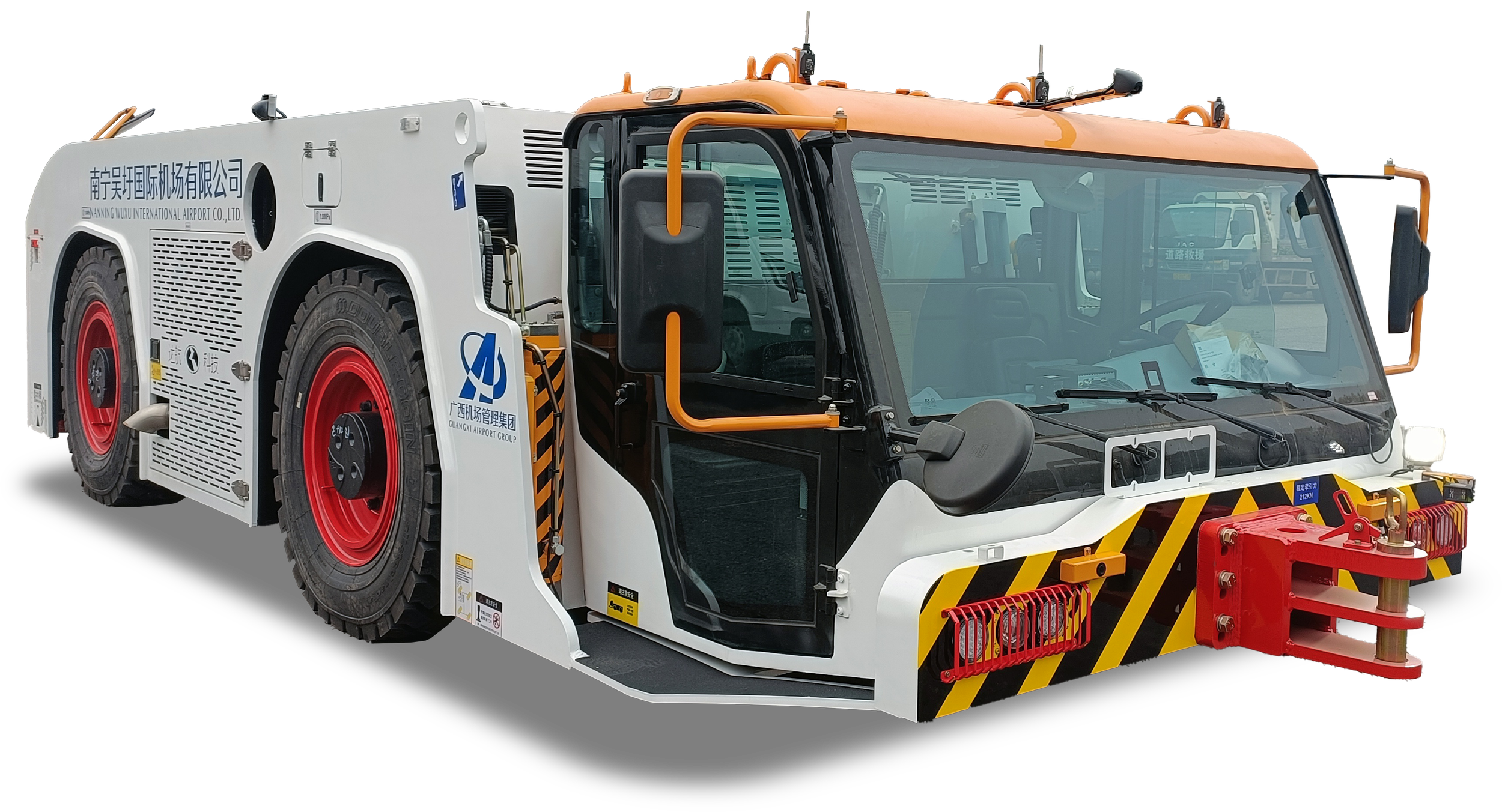

Medium Diesel Pushback Tractor
