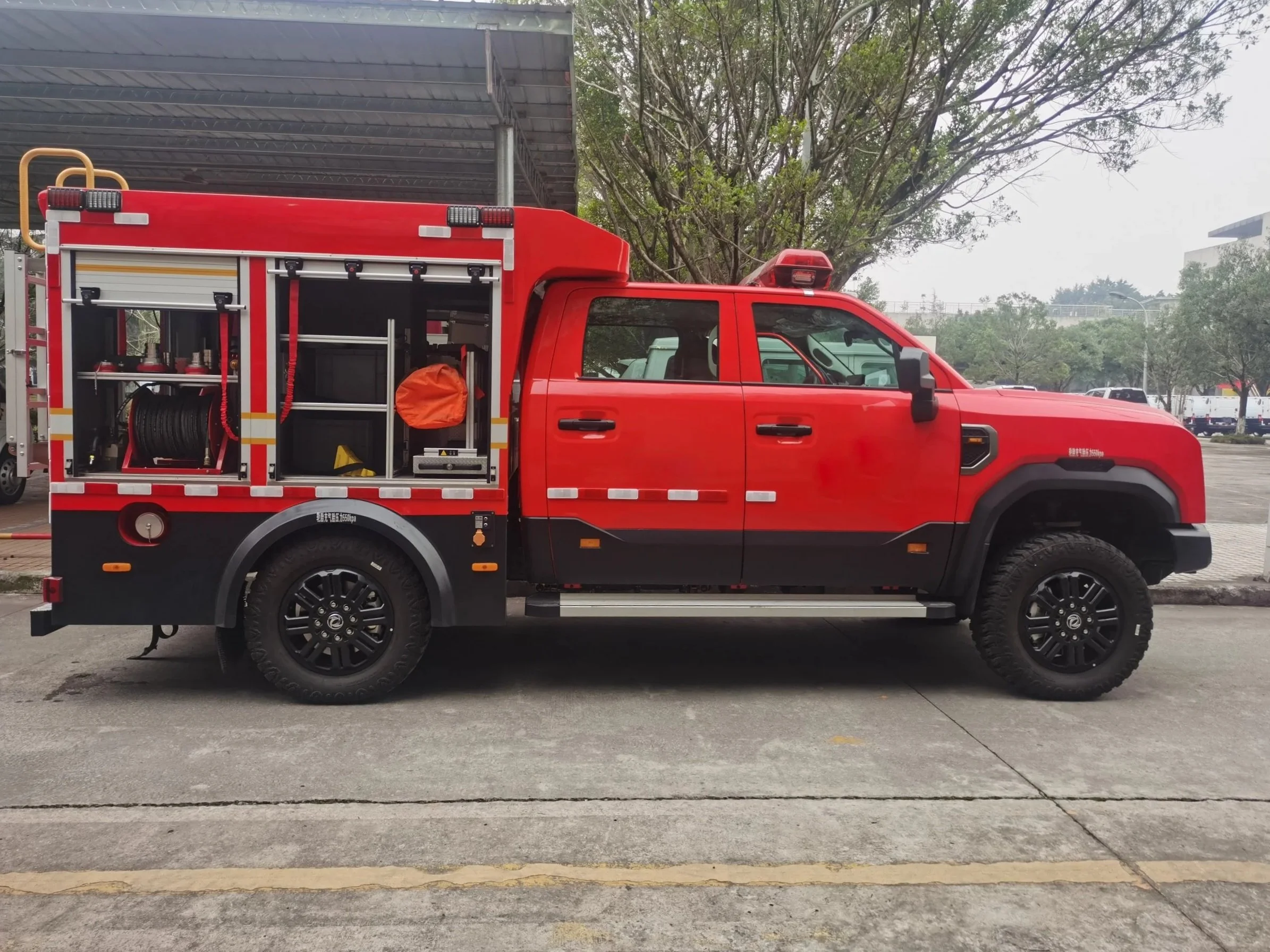

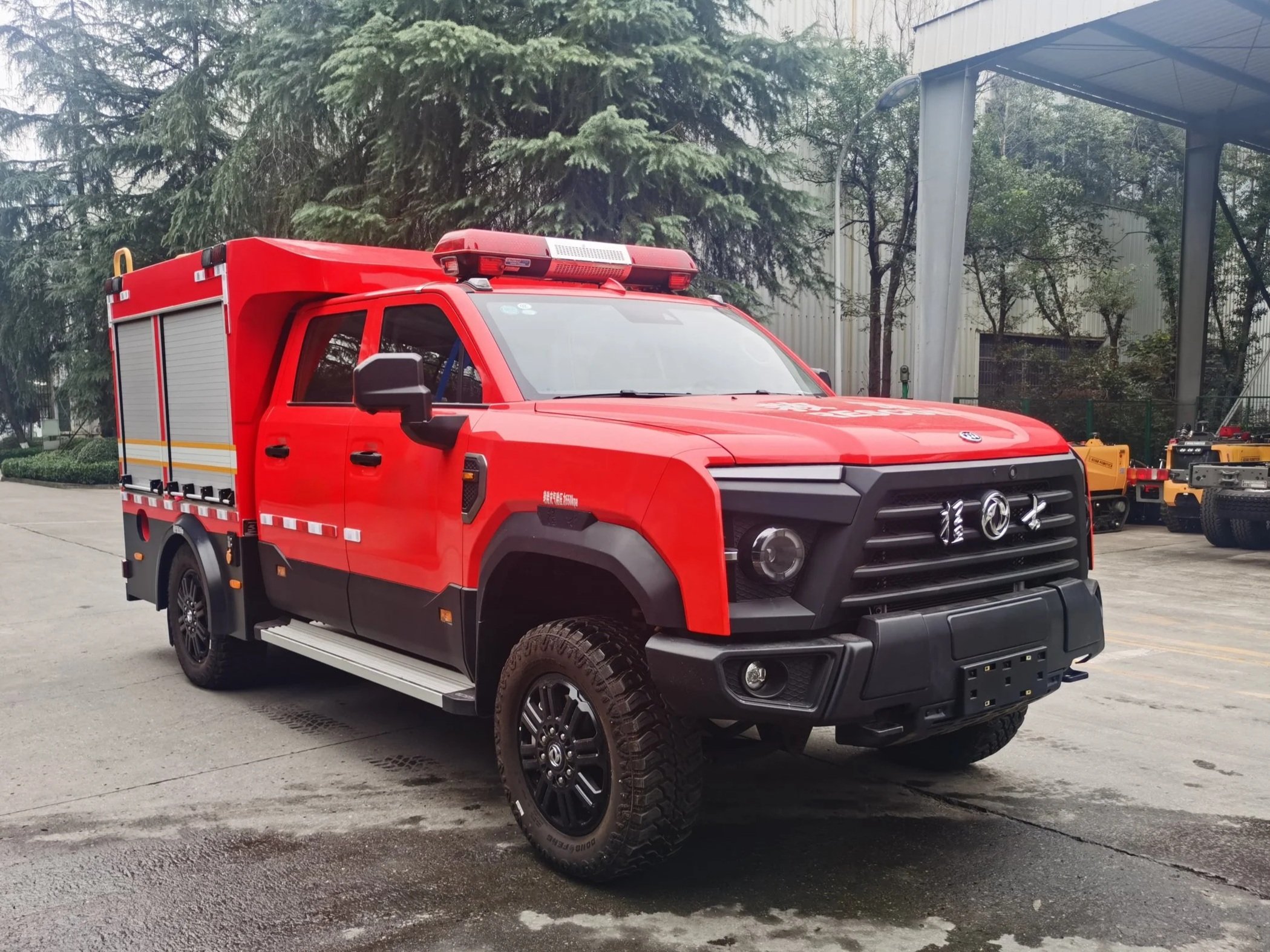

Water Mist Fire Truck

High-Pressure Water Mist Fire Suppression System
The fine water mist system operates at up to 10 MPa with a flow rate of 36 L/min, delivering up to 8 m in mist mode and 14 m in direct stream mode via a 30 m high-pressure hose reel for rapid initial fire suppression and fire spread control.

Integrated Firefighting Agent System
The vehicle carries 500 L of water and 50 L of foam extinguishing agent, supporting both water mist suppression and Class B fire response with adjustable direct stream and diffused mist modes.

Independent Fire Pump Unit
Equipped with a gasoline-powered horizontal single-cylinder pump engine rated at 8.2 kW, with maximum power of 11 kW, the unit includes a 6.5 L fuel tank and forced lubrication system for reliable high-pressure firefighting operation.

Vehicle Electrical & Warning System
An independent 24 V auxiliary electrical system integrates a 100 W siren, long-row warning lights, strobe lights, LED scene lighting, and equipment compartment illumination to support safe and effective emergency operations.

High Mobility for Rapid Response
The compact body and 4×4 drivetrain allow the vehicle to operate effectively in narrow streets, alleys, town roads, and mountainous terrain, enabling quick access to fire scenes.

Efficient Initial Fire Attack Capability
High-pressure water mist technology supports rapid cooling, flame suppression, and fire spread control, making the vehicle especially suitable for early-stage firefighting.

Multi-Role Rescue Configuration
The vehicle supports personnel, breathing apparatus, hoses, and other rescue and firefighting equipment, allowing it to assist with both fire suppression and initial emergency response tasks.

Initial and Confined Space Fires
In libraries, archives, museums, data centers, or smaller enclosed spaces such as residential rooms, offices, and hotel service areas, the vehicle’s high-pressure water mist system can suppress fires quickly while reducing water damage to surrounding property.

Parking Garage and Tunnel Fires
In enclosed environments such as underground garages and tunnels, water mist can help reduce temperature, suppress flame spread, and support initial fire containment in restricted spaces.

Vehicle Fires and Municipal Response
For vehicle fires on urban expressways, narrow streets, or roadside locations, the vehicle can respond quickly using foam for flammable liquid fires and water mist for cooling and fire suppression, while also supporting emergency rescue operations at accident scenes.

Wildland Vegetation and Complex Terrain Fires
On scenic trails, forest paths, and rugged terrain, the vehicle’s high mobility allows it to reach difficult access points, where water mist can help control flames in vegetation and support cooling in smoke-heavy environments.

This vehicle is available on DONGFENG, QINGLING, IVECO, and FORD chassis platforms. Contact us to discuss configuration options and specifications for your application.
